100 ft. Cross-Link Primary Wire with 1 Conductor(s), 18 AWG, 50 V, Red

Hover over image to magnify

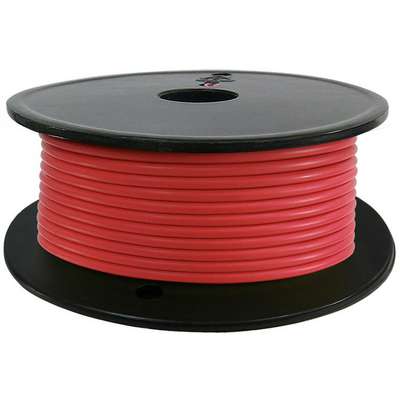

18 Ga Red     Cross Link
PI_Asset_1081427
18 Ga Red     Cross Link
PI_Asset_1081427

#71994-5 | Pkg Qty: 100

Color Family : Red
Black
Blue
Brown
Green
Red
White
Yellow

In Stock

Shipping to 60045
Catalog: E31

Technical Specifications

Key Specifications
Brand
APPROVED SUPPLIER
Mfr. Part Number
719945
Color Family
Red
Number of Conductors
1
Electrical Wire Type
Cross-Link Primary Wire
Package Quantity
100
Insulation Material
SXL
Shipping Weight
1 lb.
Item
Electrical Wire
Voltage
50 V
Length
100 ft.
Wire Gauge
18 AWG
General
Features
Remains Flexiable in -40 F Tempertures

Product Description

Sxl Cross-Link Primary Wire
  • Cross-Link Is Quickly Becoming The Most Commonly Used Wire On The Market!
  • Noted Superior To Any Other Primary Wire In Pinch, Abrasion, And Heat Aging Test.
  • Superior Resistance To Elements, Abrasion, And Where Temperature Extremes Are Encountered.
  • Meets SAE J1128 Specifications.
  • Compatible With Ford M1L-85A And Chrysler Ms-5919.
  • Stranded Annealed Soft Copper.
  • Primary Applications: Trucks, Tractors And Car Engine Compartment Where Higher Heat Resistance Is Required.
  • Temperature Rating: -59° F To 257° F (-51° C To 125° C)
  • Voltage Range: 50 Volts Maximum
  • Wire Gauge: 18
  • Color: Red
  • Quantity: One 100 Foot Roll

Expertly Selected Product Pairings

Self-Fusing Tape,1 In x 432 In,
$26.21 pkg | $26.21 ea
Item: 922480-1 | Pkg Qty: 1

Compliance & Restrictions

California Proposition 65 Icon
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Lot Tracked Item
Lot Tracked Item Details
Item Barcode
0719945
18 Ga Red Cross Link
 NameItemDescription
UNSPSC CODESUNSPSC CODES26121524CROSSLINK 18 GUAGE RED
VMRS (ATA) CODESVMRS (ATA) CODES053-007-002CROSSLINK 18 GUAGE RED
