FANTECH

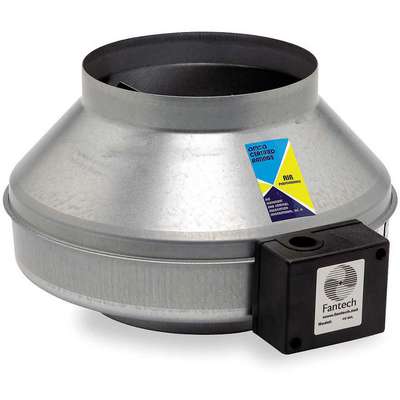

Fantech Galvanized Steel Inline Centrifugal Duct Fan, Fits Duct Dia. 6", Voltage 120 V
Hover over image to magnify
#921674-6 | Pkg Qty: 1
$278.88 pkg | $278.88 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Agency Compliance
C-UL-US, AMCA Certified, HVI Certified
Mfr. Part Number
FG6
Bearing Type
Ball
Motor Enclosure
Totally Enclosed
Brand
FANTECH
Mounting Position
Horizontal or Vertical
Housing Diameter
11-3/8 in.
Number of Speeds
1
Housing Material
Galvanized Steel
Package Quantity
1
Item
Inline Centrifugal Duct Fan
Shipping Weight
9.9 lb.
Length
6-1/8 in.
General
Airflow @ 0.000 in SP
303 cfm
Motor IP Rating
IP44
Airflow @ 0.000 in SP - Range
250 to 499 cfm
Motor Output Power
70 W
Airflow @ 0.000 in. SP - Range
0 to 999 cfm
Motor Speed
2,700 RPM
For Fan Type
Centrifugal Duct Fan
Nameplate Voltage
120V AC
Green Certification/Other Recognition
ENERGY STAR® Certified
Nominal Voltage
120V AC
Green Environmental
Product Contributes To Reducing Energy Consumption
Overall Dimensions H x W
13 3/8 in x 7 1/2 in
High-Efficiency Motor
No
Speed Control Included
No
Includes
Mounting Bracket
Speed Controllable
Yes
Maximum Inlet Air Temperature
140 Degrees F
Product Description
This fantech® centrifugal in-line duct fan features an externally mounted wiring box, airtight housing, and backward curved impeller.
Expertly Selected Product Pairings
Item Barcode
Inline Centrifugal Duct Fan,6
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 4YM44 | Inline Centrifugal |
 | UNSPSC CODES | 40101604 | |
 | VMRS (ATA) CODES | 053-006-009 | Inline Centrifugal |
