FANTECH

Fantech Galvanized Steel Inline Fan, Fits Duct Dia. 6", Voltage 120 V

Hover over image to magnify
Inline Fan,6 In. Dia.
Inline Fan,6 In. Dia.

#927626-6 | Pkg Qty: 1

$263.71 pkg | $263.71 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Agency Compliance
HVI, cULus, cCSAus, AMCA, Energy Star
Mfr. Part Number
FG 6M
Bearing Type
Ball
Motor Enclosure
External Rotor
Brand
FANTECH
Mounting Position
Verticle / Horizontal
Housing Diameter
13-1/8 in.
Number of Speeds
1
Housing Material
Galvanized Steel
Package Quantity
1
Item
Inline Fan
Shipping Weight
10.45 lb.
Length
13-1/8 in.
General
Airflow @ 0.000 in SP
418 cfm
Motor IP Rating
IP44
Airflow @ 0.000 in SP - Range
250 to 499 cfm
Motor Output Power
120 W
Airflow @ 0.000 in. SP - Range
0 to 999 cfm
Motor Speed
2,350 RPM
For Fan Type
Centrifugal Duct Fan
Nameplate Voltage
120V AC
Green Certification/Other Recognition
ENERGY STAR® Certified
Nominal Voltage
120V AC
Green Environmental
Product Contributes To Reducing Energy Consumption
Overall Dimensions H x W
15 1/8 in x 8 in
High-Efficiency Motor
No
Speed Control Included
No
Includes
Mounting Bracket
Speed Controllable
Yes
Maximum Inlet Air Temperature
140 Degrees F

Product Description

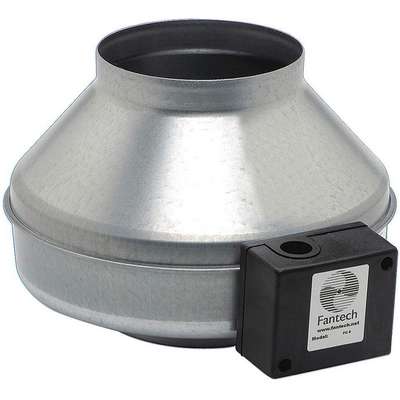

Duct fan has an airtight housing, backward curved impeller, and a Class B motor. Includes a 3"L x 3-1/2"W x 1-1/2"D externally mounted wiring box.
