Best Seller

8 GA To 1 GA Black Seal-A-Splice Iii 6" Long

Hover over image to magnify

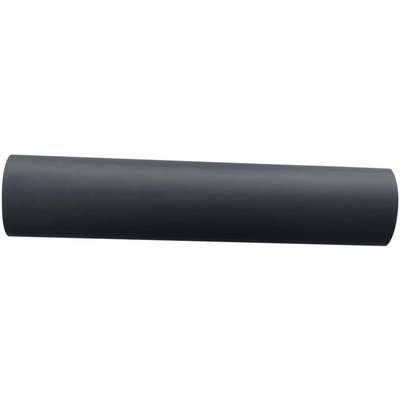

Seal-A-Splice III 3/4x6 Black
PI_Asset_1091293
Seal-A-Splice III 3/4x6 Black
PI_Asset_1091293

#71792 | Pkg Qty: 2

Color Family : Black
Package Quantity
2 25
Item Number 71792
Scanner Description Seal-A-Splice III 3/4x6 Black
Inventory Status In Stock
Weight 0.05 lb
Brand IMPERIAL
Trade Name SEAL-A-SPLICE
Catalog E37

Available Assortments View All

Technical Specifications

Brand
IMPERIAL
Recovered Wall Thickness
0.098 in.
Color Family
Black
Shrink Tubing Type
Heat Shrink Tubing
Heat Shrink Tubing Shrink Ratio
2:1 Shrink Ratio
Temperature Range
-45 deg. C to 125 deg. C
Heat Shrink Tubing Style
Heavy Duty HST
Trade Name
SEAL-A-SPLICE
Inside Diameter Expanded Pre-Shrink
3/4 in.
Tube Material
Polyolefin
Item
Heat Shrink Tubing
Use Shrink Tubing With Wire Size
8 to 1 AWG
Length
6 in.
Wall Thickness
0.035 in.
Pack Quantity
2

Product Description

Imperial® Seal-A-Splice® III Extra Heavy-Duty Heat Shrink Tubing
  • Offers Greater Protection Under The Most Adverse Environmental Conditions.
  • Provides Additional Strain Relief, Abrasion Protection, Optimum Waterproofing, And Environmentalprotection In Submersible, Above Ground, Or Direct Buried Applications.
  • Seals Can Be Made Over Lead, Steel, Aluminum, And Copper.
  • Eliminates Grease, Tape, And Epoxy Methods.
  • Thick Wall Insulation Protects Through 2,000 Volts.
  • Rated For Continuous Operating Temperature Up To 90°C.
  • Heat Source Of 250° F. To 275° F. Needed To Shrink Tubing.
  • Color: Black Measurements:
  • Length: 6"
  • Approximate Fraction Size: 3/4
  • Internal Diameter:
  • Mi Ninum Expanded: 0.750"
  • Maximum Recovered: 0.220"
  • Wal L Thickness:
  • Expanded: 0.030"
  • Recovered: 0.095"
  • Recommended Cable Size: 8 Thru 1 Awg
  • Note: Ul Approved.

Compliance & Restrictions

Prop 65 WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Lot Tracked Item Lot tracked item
Safety Data Sheet (SDS)  View | Download
Item Barcode
0717920
  Name Item Description
Phillips Phillips 6-212 SEAL-A-SPLICIII 8ga-1ga
Your number AUVECO 18735 SEAL-A-SPLIC III 8ga-1ga
UNSPSC CODES UNSPSC CODES 39121721 SEAL-A-SPLIC III 8ga-1ga
VMRS (ATA) CODES VMRS (ATA) CODES 053-007-002 SEAL-A-SPLIC III 8ga-1ga
