100 ft. Cross-Link Primary Wire with 1 Conductor(s), 12 AWG, 50 V, Red

Hover over image to magnify

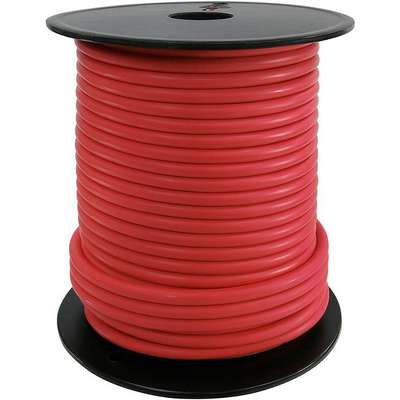

12 Ga Red Cross Link
PI_Asset_1081403
12 Ga Red Cross Link
PI_Asset_1081403

#71391-5 | Pkg Qty: 100

Color Family : Red
Black
Blue
Brown
Green
Orange
Red
White
Yellow

In Stock

Shipping to 60045
Catalog: E31

Technical Specifications

Key Specifications
Brand
APPROVED SUPPLIER
Number of Conductors
1
Color Family
Red
Package Quantity
100
Electrical Wire Type
Cross-Link Primary Wire
Shipping Weight
2.8 lb.
Insulation Material
SXL
Voltage
50 V
Item
Electrical Wire
Wire Gauge
12 AWG
Length
100 ft.
General
Features
Remains Flexiable in -40 F Tempertures

Product Description

Sxl Cross-Link Primary Wire
  • Cross-Link Is Quickly Becoming The Most Commonly Used Wire On The Market!
  • Noted Superior To Any Other Primary Wire In Pinch, Abrasion, And Heat Aging Test.
  • Superior Resistance To Elements, Abrasion, And Where Temperature Extremes Are Encountered.
  • Meets SAE J1128 Specifications.
  • Compatible With Ford M1L-85A And Chrysler Ms-5919.
  • Stranded Annealed Soft Copper.
  • Primary Applications: Trucks, Tractors And Car Engine Compartment Where Higher Heat Resistance Is Required.
  • Temperature Rating: -59° F To 257° F (-51° C To 125° C)
  • Voltage Range: 50 Volts Maximum
  • Wire Gauge: 12
  • Color: Red
  • Quantity: One 100 Foot Roll

Frequently Bought Together

12 Ga Red Cross Link
Assortment Cross Link Wire
Currently Viewing
12 Ga Red Cross Link
 | #71391-5 | Pkg Qty: 100
$1,407.11 pkg
 | #74 | Pkg Qty: 1

Expertly Selected Product Pairings

Self-Fusing Tape,1 In x 432 In,
$26.01 pkg | $26.01 ea
Item: 922480-1 | Pkg Qty: 1

Available Assortments View All
Assortment Cross Link Wire
$1,407.11 pkg | $1,407.11 ea
Item: 74
Pkg Qty: 1
Assortment Cross Link Wire
$612.81 pkg | $612.81 ea
Item: 76
Pkg Qty: 1

Compliance & Restrictions

California Proposition 65 Icon
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Lot Tracked Item
Lot Tracked Item Details
Item Barcode
0713915
12 Ga Red Cross Link
 NameItemDescription
UNSPSC CODESUNSPSC CODES26121524CROSSLINK 12 GAUGE RED
VMRS (ATA) CODESVMRS (ATA) CODES053-007-002CROSSLINK 12 GAUGE RED
