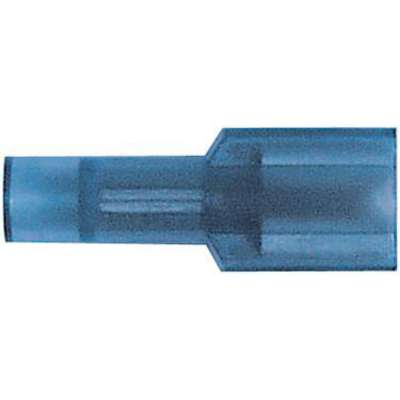

Female Quick Disconnect Terminal, Blue, 16-14 AWG
Hover over image to magnify
Technical Specifications
Brand
APPROVED SUPPLIER
Package Quantity
10
Color Family
Blue
Shipping Weight
0.03 lb.
Connection Material
Copper
Tab Thickness
0.03 in.
Connection Type
Female
Tab Width
1/4 in.
Diameter
0.164 in.
Temperature Range (Deg. C)
-65 to +105 deg. C
Insulation Material
Nylon
Temperature Range (Deg. F)
-85 to +221 deg. F
Item
Terminal
Voltage Range
600 V
Nylon Terminal Connector
Female Quick Disconnect
Wire Gauge
16-14 AWG
Product Description
Nycrimp Nylon Insulated Quick Disconnect Female Terminal
- High Temperature Flared Nylon Insulation.
- Recommended Mate, Part No. 71005 .
Compliance & Restrictions
Lot Tracked Item Details
Documents
Item Barcode
Blue Fem Quick Disc
| Name | Item | Description | |
|---|---|---|---|
 | UNSPSC CODES | 39121432 | |
 | VMRS (ATA) CODES | 053-007-002 | BLUE FEMALE QUICK DISC |
