IMPERIAL

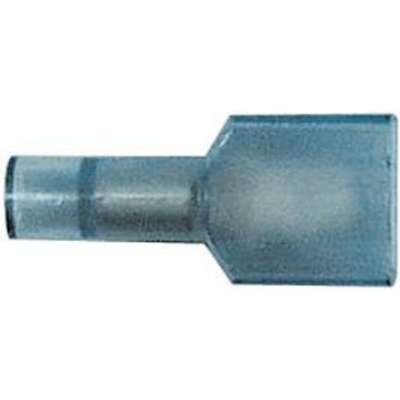

Imperial Nycrimp Male Quick Disconnect Terminal, Blue, 16-14 AWG
Hover over image to magnify
Technical Specifications
Brand
IMPERIAL
Shipping Weight
0.31 lb.
Color Family
Blue
Tab Thickness
0.0318 in.
Connection Material
Zinc Chromate Plated Brass
Tab Width
1/4 in.
Connection Type
Male
Temperature Range (Deg. C)
-65 to +105 deg. C
Diameter
0.17 in.
Temperature Range (Deg. F)
-85 to +221 deg. F
Insulation Material
Nylon
Trade Name
NYCRIMP
Item
Terminal
Voltage Range
600 V
Nylon Terminal Connector
Male Quick Disconnect
Wire Gauge
16-14 AWG
Package Quantity
100
Product Description
Nycrimp Nylon Insulated Quick Disconnect Male Terminal
- High Temperature Flared Nylon Insulation.
- Wire Range: 16-14 Gauge
- Tab Size: Width: .250, Thickness: .030
- Color: Blue
- Recommended Mate, Part No. 71004 .
Frequently Bought Together
Currently Viewing
Blue Male Quick Disc
| #71005 | Pkg Qty: 100
$131.46 pkg
Available Assortments View All
Compliance & Restrictions
Lot Tracked Item Details
Documents
Item Barcode
Blue Male Quick Disc
| Name | Item | Description | |
|---|---|---|---|
 | GROTE VENDOR ITEMS ONLY | 84-3391 | BLUE MALE QUICK DISC |
 | UNSPSC CODES | 39121432 | BLUE MALE QUICK DISC |
 | VMRS (ATA) CODES | 053-007-002 | BLUE MALE QUICK DISC |
