ENERPAC

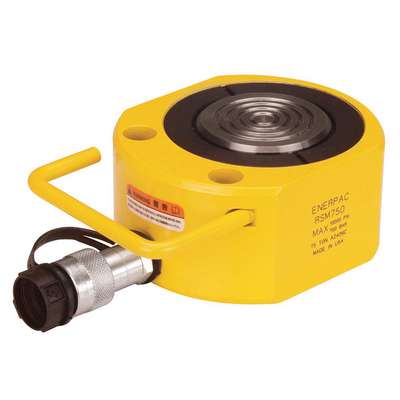

Hydraulic Ram: Single Acting, 75 ton Nominal Capacity, 5/8 in Nominal Stroke Lg, Steel, RSM

Hover over image to magnify
Hydraulic Ram,75 Ton,5/8"
Hydraulic Ram,75 Ton,5/8"

#938893-1 | Pkg Qty: 1

$2,544.54 pkg | $2,544.54 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Body Material
Steel
Nominal Capacity
75 ton
Brand
ENERPAC
Pack Quantity
1
Cylinder Type
Low Profile
Series
RSM
Handle
Yes
Shipping Weight
24.65 lb.
Item
Hydraulic Ram
Stroke Length
5/8 in.
Material of Construction
Steel
Type
Flat
Mfr. Part Number
RSM750
Weight Capacity
75 tons
General
Center Hole Dia.
4 1/2 in
Nominal Stroke Length
5/8 in
Effective Push Area
15.9 sq in
Oil Capacity Push
9.94 cu in
Extended Height
3.75 in
Outside Dia.
6.50 in in x 5.50 in
Includes
Dust Cap, Female Coupler
Plunger Dia.
3.25 in
Max. Pressure
10,000 psi
Retracted Height
3.13 in
Max. Push Capacity
75 ton
Single Acting/Double Acting
Single Acting

Product Description

Low-profile hydraulic rams (sometimes called shorty cylinders, flat jack cylinders, and pancake cylinders) have a low height when fully retracted, allowing them to be used in tight or confined spaces. They have a shorter stroke length than standard rams. Hydraulic rams attach to hydraulic pumps to support heavy loads and pressures up to 10,000 psi.

Standard hydraulic rams are used in general purpose applications for one-direction lifting and supporting. They are often used with fixtures to support tasks such as crimping, pressing, and punching. They can also be used standalone for lifting heavy objects.
