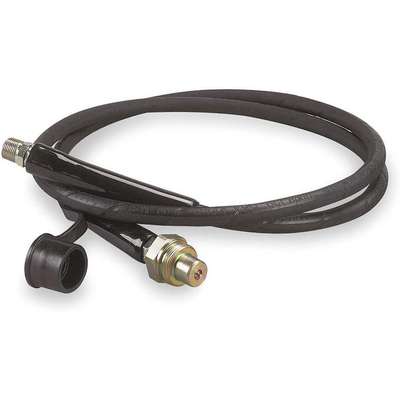

915523-6 Hydraulic Hose Assembly: 3/8 in x 3/8 in Fitting Size, MNPT x M Quick Disconnect, Rubber, Black, 2:1

Technical Specifications

Key Specifications

Brand

EATON AEROQUIP

Fitting Size

3/8 in. x 3/8 in.

Fitting Type

MNPT x M Quick Disconnect

Hose Length

10 ft.

Item

Hydraulic Hose Assembly

Mfr. Part Number

HC-9210

Package Quantity

1

Shipping Weight

2.8 lb.

Brand

EATON AEROQUIP

Item

Hydraulic Hose Assembly

Fitting Size

3/8 in. x 3/8 in.

Mfr. Part Number

HC-9210

Fitting Type

MNPT x M Quick Disconnect

Package Quantity

1

Hose Length

10 ft.

Shipping Weight

2.8 lb.

General

Compatible Chemicals

Air, Automatic Transmission Fluid, Diesel Fuel, Ethylene Glycol, Fresh Water, Fuel Oil, Gasoline, Hydraulic Fluid (Petroleum), Hydraulic Fluid (Synthetic), Kerosene, Lithium Grease, Lubricated Air, Mineral Oil, Motor Oil, Salt Water

For Media Type

Air, Automatic Transmission Fluid, Diesel Fuel, Ethylene Glycol, Fuel Oil, Gasoline, Hydraulic Fluid, Kerosene, Lithium Grease, Lubricated Air, Mineral Oil, Motor Oil, Water

For Use With

10,000 PSI Pumps and Cylinders

Hose Configuration

Coupled Assembly

Hose Cover Material

Synthetic Rubber

Hose Fitting A Material

Carbon Steel

Hose Fitting A Type

MNPT

Hose Fitting B Material

Carbon Steel

Hose Fitting B Type

M Quick Disconnect

Hose Fittings

3/8 in MNPT x 3/8 in M Quick Disconnect

Hose Inside Dia.

1/4 in

Hose Reinforcement Material

Carbon Steel

Hose Reinforcement Type

Braid

Hose Tube Material

Rubber

Includes

3/8" Male Coupler

Max. Working Pressure @ 70 F

10,000 psi

Not Recommended Chemicals

0, Acetic Acid (Glacial), Acetic Acid 20%, Acetic Acid 80%, Acetone, Antifreeze (Coolant), Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Citric Acid 50%, Ethyl (Ethanol), Formic Acid, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Isopropyl (Isopropanol), Methyl (Methanol), Methyl Ethyl Ketone (MEK), Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Phosphoric Acid (40% Solution), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sulfuric Acid (to 10%)

Safety Factor

1899-12-31 02:01:00

Standards

MHI 1J100, MSHA APPROVED

Temp. Range

-40 Degrees to 212 Degrees F

Compatible Chemicals

Air, Automatic Transmission Fluid, Diesel Fuel, Ethylene Glycol, Fresh Water, Fuel Oil, Gasoline, Hydraulic Fluid (Petroleum), Hydraulic Fluid (Synthetic), Kerosene, Lithium Grease, Lubricated Air, Mineral Oil, Motor Oil, Salt Water

Hose Inside Dia.

1/4 in

For Media Type

Air, Automatic Transmission Fluid, Diesel Fuel, Ethylene Glycol, Fuel Oil, Gasoline, Hydraulic Fluid, Kerosene, Lithium Grease, Lubricated Air, Mineral Oil, Motor Oil, Water

Hose Reinforcement Material

Carbon Steel

For Use With

10,000 PSI Pumps and Cylinders

Hose Reinforcement Type

Braid

Hose Configuration

Coupled Assembly

Hose Tube Material

Rubber

Hose Cover Material

Synthetic Rubber

Includes

3/8" Male Coupler

Hose Fitting A Material

Carbon Steel

Max. Working Pressure @ 70 F

10,000 psi

Hose Fitting A Type

MNPT

Not Recommended Chemicals

0, Acetic Acid (Glacial), Acetic Acid 20%, Acetic Acid 80%, Acetone, Antifreeze (Coolant), Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Citric Acid 50%, Ethyl (Ethanol), Formic Acid, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Isopropyl (Isopropanol), Methyl (Methanol), Methyl Ethyl Ketone (MEK), Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Phosphoric Acid (40% Solution), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sulfuric Acid (to 10%)

Hose Fitting B Material

Carbon Steel

Safety Factor

1899-12-31 02:01:00

Hose Fitting B Type

M Quick Disconnect

Standards

MHI 1J100, MSHA APPROVED

Hose Fittings

3/8 in MNPT x 3/8 in M Quick Disconnect

Temp. Range

-40 Degrees to 212 Degrees F

Product Description

These Eaton Aeroquip FC579 hydraulic hose assemblies are suitable for high-pressure applications and have crimped-on rubber strain relief on their ends that helps extend the hoses' life. They have an abrasion-resistant SBR (styrene-butadiene rubber) tube and cover and are reinforced with two layers of steel wire braids for strength. The hose exhibits low volumetric expansion under pressure, which helps maintain the efficiency of the hydraulic system. These hydraulic hose assemblies are used for hydraulic jacking applications with petroleum- and water-based fluids. They come with fittings installed on both ends and are ready to connect to compatible equipment.

Hydraulic hose assemblies come with fittings installed on both ends for connecting the hoses to compatible equipment. Hydraulic hoses are used for transferring fluids in petroleum- and water-based hydraulic systems commonly found on industrial, mining, and manufacturing equipment. These hoses are reinforced to maximize their strength.
