JAFLINE HD

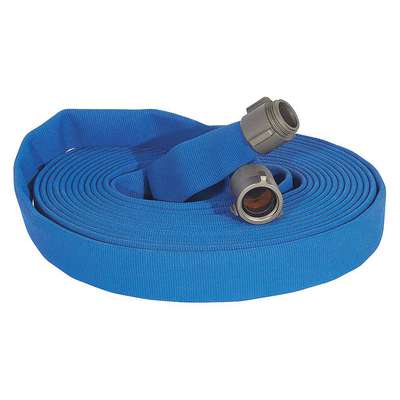

Attack Line Fire Hose, Double Jacket, MNH x FNH, Rocker, 50 ft. Hose Length

Hover over image to magnify
Attack Line Fire Hose,1-1/2"
Attack Line Fire Hose,1-1/2"

#937411-5 | Pkg Qty: 1

$159.46 pkg | $159.46 ea
Color Family : Blue
Blue
Red
Tan
Yellow

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
JAFLINE HD
Package Quantity
1
Color Family
Blue
Shipping Weight
15.3 lb.
Mfr. Part Number
G52H15HDB50N
General
Abrasive Materials
NT
Hydrochloric Acid -20 pct
NT
Acetic Acid -20 pct
NT
Hydrochloric Acid -37 pct
NT
Acetic Acid -80 pct
NT
Hydrofluoric Acid -100 pct
NT
Acetone
NT
Hydrofluoric Acid -20 pct
NT
Adhesives
NT
Hydrofluoric Acid -75 pct
NT
Air
R
Hydrogen Peroxide
NT
Ammonia - Liquid
NT
Isopropanol
NT
Ammonium Hydroxide
NT
Kerosene
NT
Anhydrous Ammonia
NT
Lacquer Thinners
NT
Antifreeze Coolant
NT
Liquid Nitrogen
NT
Argon
NT
Liquid Propane
NT
Automatic Transmission Fluid
NT
Lithium Grease
NT
Beverages
NT
Lubricated Air
NT
Biodiesel
NT
Max. Working Pressure @ 70 F
400 psi
Bleach
NT
Methanol
NT
Brake Fluid
NT
Methyl Chloride
NT
Calcium Chloride
NT
Methyl Ethyl Ketone
NT
Carbon Dioxide
NT
Mineral Oil
NT
Chromic Acid -10 pct
NT
Motor Oil
NT
Chromic Acid -30 pct
NT
Naphtha
NT
Chromic Acid -5 pct
NT
Natural Gas
NT
Chromic Acid -50 pct
NT
Nitric Acid -10 pct Solution
NT
Citric Acid -50 pct
NT
Nitric Acid -20 pct Solution
NT
Compatible Chemicals
Air, Deionized Water, Fresh Water, Salt Water
Nitric Acid -50 pct Solution
NT
Concentrated Nitric Acid
NT
Nitrogen Gas
NT
Coupling Material
Aluminum
Oxygen
NT
Cyclohexane
NT
Paint
NT
DEF
NT
Paint Thinner
NT
Deionized Water
R
Paraffin Wax
NT
Diesel Fuel
NT
Pesticides
NT
Dry Food
NT
Phosphoric Acid -40 pct Solution
NT
E85
NT
Potassium Hydroxide - 50 pct
NT
Ethanol
NT
Propane Gas
NT
Ethyl Acetate
NT
Refrigerant R-12
NT
Ethylene Glycol
NT
Refrigerant R-134a
NT
Fertilizers
NT
Refrigerant R-22
NT
Fire Hose Type
Double Jacket
Refrigerant R-404A
NT
Fitting Type
MNH x FNH
Refrigerant R-407C
NT
For Media Type
Air, Water
Refrigerant R-502
NT
Formaldehyde
NT
Salt Water
R
Formaldehyde - 40 pct
NT
Sodium Bicarbonate - 10 pct
NT
Formic Acid
NT
Sodium Bisulfate
NT
Fresh Water
R
Sodium Bisulfite
NT
Fuel Oil
NT
Sodium Hydroxide - 20 pct
NT
Fungicides
NT
Sodium Hydroxide - 50 pct
NT
Gasoline
NT
Sodium Hydroxide - 80 pct
NT
Glacial Acetic Acid
NT
Solvents
NT
Glycerin
NT
Steam
NT
Heptane
NT
Stoddard Solvent
NT
Herbicides
NT
Sulfuric Acid -10 to 75 pct
NT
Hexane
NT
Sulfuric Acid -75 to 100 pct
NT
Hose Configuration
Coupled Assembly
Sulfuric Acid -up to 10 pct
NT
Hose Cover Material
Polyester
Temp. Range
-40° to 176°F
Hose Fitting A Material
Aluminum
Thread Size
1-1/2"
Hose Fitting A Type
MNH
Thread Type
NST/NH
Hose Fitting B Material
Aluminum
Toluene
NT
Hose Fitting B Type
FNH
Trichlorethylene - 50 pct
NT
Hose Fittings
Aluminum 1-15/16 in MNH x Aluminum 1-15/16 in FNH
Turpentine
NT
Hose Inside Dia.
1 1/2 in
UL Listed
Yes
Hose Tube Material
EPDM
Vegetable Oil
NT
Hydraulic Oils - Petroleum
NT
Wet Food
NT
Hydraulic Oils - Synthetic
NT
Windshield Washer Fluid
NT
Hydrazine
NT
Xylene
NT
Hydrochloric Acid -100 pct
NT

Product Description

These double-jacket attack line fire hoses are made from polyester and have a polyurethane, EPDM, or NBR lining. The hoses are lightweight, which minimizes the effort required to carry and move them. They remain flexible in cold temperatures and have a high burst rating. The hoses provide very low friction loss, which helps ensure they consistently deliver water at the appropriate flow rate and pressure. The hoses are immune to mildew and rot, and colored versions of the hose are impregnated with a polymer coating that improves their abrasion resistance. These double-jacket attack line fire hoses are used in municipal fire departments, industrial fire brigades, attack and supply lines, and high-rise packs.

Attack fire hoses (also known as action fire hoses) convey a stream of water from a fire pump to a fire to stop the fire from spreading and douse the flames. These fireproof hoses are flexible and lightweight so that firefighters can carry them to where they're needed. The hoses lay flat when not in use. They have fittings on both ends for connecting to equipment and nozzles.

Item Barcode
9374115
Attack Line Fire Hose,1-1/2"
 NameItemDescription
Grainger DropshipGrainger Dropship11N849
UNSPSC CODESUNSPSC CODES46191603
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Attack Line Fire Hose,1-
