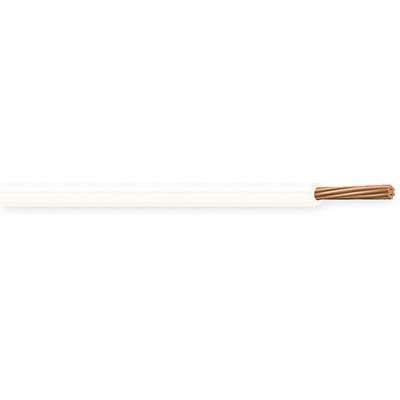

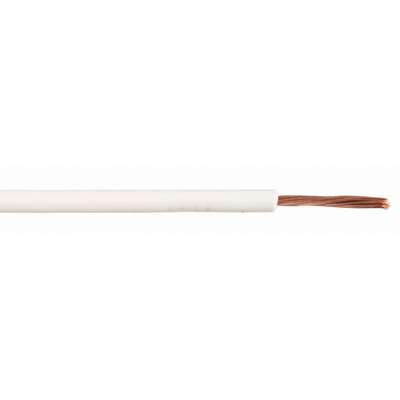

Carol Machine Tool Wire: 18 AWG Wire Size, White, 500 ft Lg, PVC, 0.11 in Nominal Outside Dia.

Hover over image to magnify
Hookup Wire/Mtw,18AWG,500ft,Wht
PI_Asset_1769341
Hookup Wire/Mtw,18AWG,500ft,Wht
PI_Asset_1769341

#933641-1 | Pkg Qty: 1

$73.44 pkg | $73.44 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
CAROL
Package Quantity
1
Color Family
White
Shipping Weight
5.01 lb.
Conductor Material
Copper
Spool Length
500 ft.
Insulation
PVC
Stranded / Solid
Stranded
Insulation Material
PVC
Stranding
16 x 30
Item
Machine Tool Wire
Temperature Range
MTW and TFF -40 to 194deg. F, TEW and AWM -4 to 221deg. F
Jacket Color
White
Type
Hook Up, Stranded
Length
500 ft.
Voltage
600V
Mfr. Part Number
76502.18.02
Wire Color
White
Nominal Outside Diameter
0.11 in.
Wire Size
18 AWG
General
Conductor Design
Stranded
Temp. Rating
MTW and TFF -40° to 194°F, TEW and AWM -4° to 221°F
Standards
AWM Style 1015, AWM Style 1335 8-10 AWG, AWM Style 1336 8 AWG, CSA Type TEW, Passes VW-1 Vertical Flame Test, UL and NMTBA Type MTW/AWM
Trade Designation
AWM, MTW, TEW, TFF
Temp. Range
MTW and TFF -40° to 194°F, TEW and AWM -4° to 221°F

Product Description

Machine tool wire, commonly called MTW, is a type of hookup wire with a highly stranded bare copper conductor. It is commonly used in the internal wiring of HVAC equipment, machine tools, circuits, and control panels to supply power. It has a durable jacket that is heat-, oil-, and moisture-resistant and is very flexible, making it a good choice for installing in tight or awkward spaces.

Lead, hookup, and machine tool wire are thin, small- to medium-gauge (24 to 8 AWG) insulated wire used to establish internal electrical connections and provide power in appliances, motors, power tools, or other electronic equipment. They are commonly used in product assembly applications in manufacturing facilities.
