SQUARE D

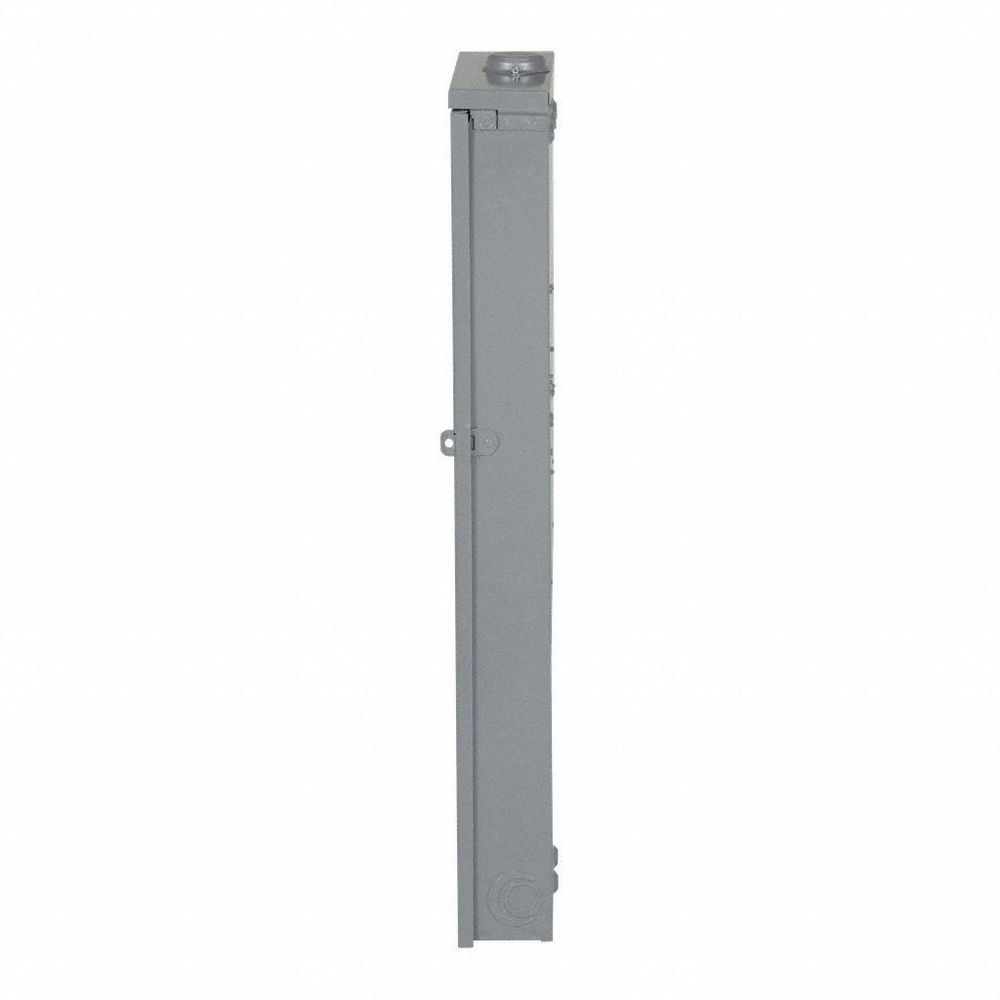

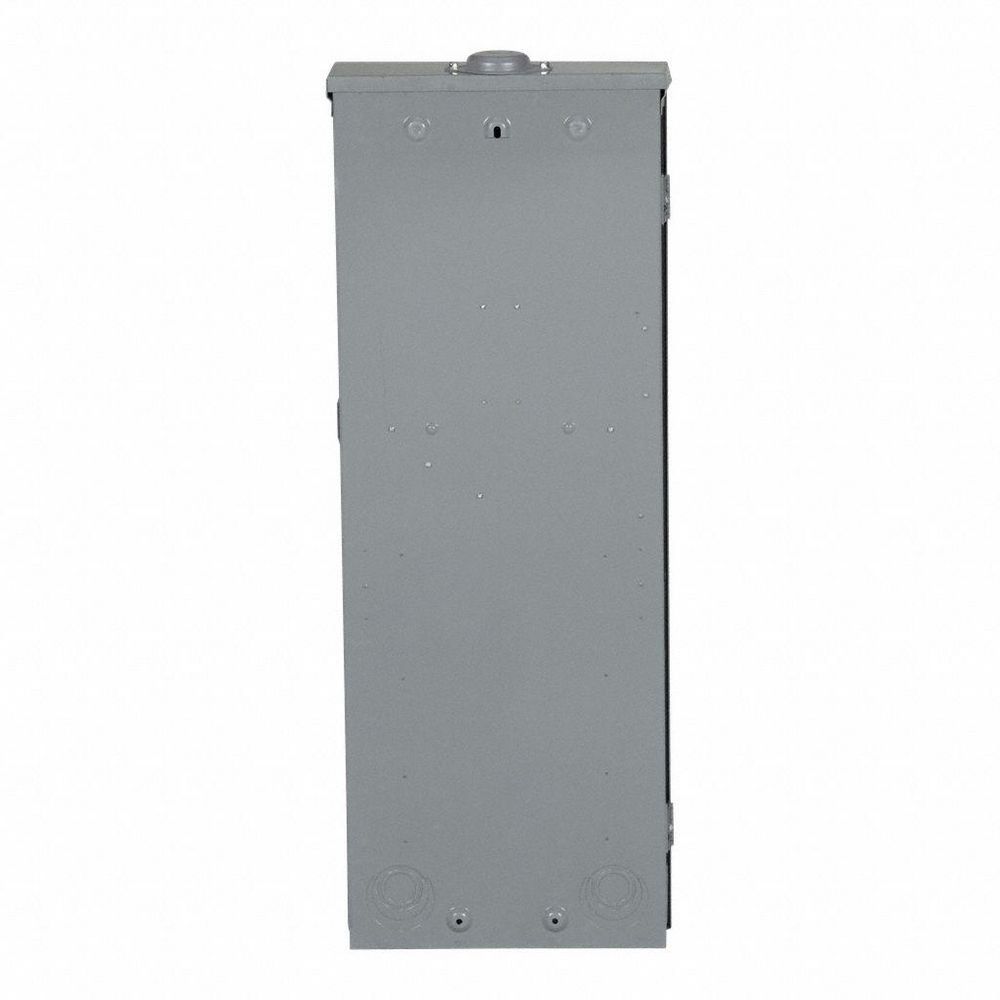

Square D Load Center, Main Circuit Breaker, Convertible,150 Amps,208Y/120VAC, 240/120VAC Delta, 240VAC Delta

Hover over image to magnify
Load Center,Cb,150A,208Y/
PI_Asset_1984480
PI_Asset_1988536
PI_Asset_1991623
Load Center,Cb,150A,208Y/
PI_Asset_1984480
PI_Asset_1988536
PI_Asset_1991623

#930824-2 | Pkg Qty: 1

$2,494.44 pkg | $2,494.44 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Aluminum Wire (AWG/kcmil)
4 to 300
Material of Construction
Shielded Copper
Amperage
150 A
Maximum Number of 1-Pole Circuits
30
Amps
150 A
Maximum Number of Tandem Breakers
0
Brand
SQUARE D
Mfr. Part Number
QO330MQ150RB
Bus Material
Tin Plated Copper
NEMA Rating
3R
Circuit Breaker Type
QO
Number of Spaces
30
Copper (AWG/kcmil)
4 to 300
Package Quantity
1
Cover Type
Integral
Phase
3
Depth
4-1/2 in.
Recommended Ground Bar Kit
1D370
Enclosure
Outdoor
Recommended Surface Cover
Included
Enclosure Material
Galvanized Steel
Series
QO
Enclosure NEMA Rating
3R
Shipping Weight
46.65 lb.
Ground Bar Kit
1D370
Short Circuit Current Rating
25kA
Height
39.38 in.
Surface Cover
Included
Item
Load Center
Type
Main Circuit Breaker
Main Circuit Breaker
Factory installed
Voltage
208Y/120/240VAC
Main Circuit Breaker or Main Lug
Convertible, Main Circuit Breaker
Width
14.77 in.
Mains
Convertible
General
Cover Attachment Style
Side Hinge
Location
Outdoor
Cover Closure Method
Door Latch
Max. No. of 1-Pole Circuits
30
Enclosure Surface Finish
Enamel
Max. Operating Temp.
104°F
Feed Location
Top/Bottom
Min. Operating Temp.
23°F
For Use With
Square D QO Circuit Breakers
Special Features
Mercury Free
Included Enclosure Cover
Surface Cover
Standards
RoHS Compliant

Product Description

These Square D main lug load centers distribute power downstream from main breakers and are used when all the circuit slots in the main breaker load center are full or when a remote panel is desired. They can be converted to a main breaker load center, so they can be used to distribute the main supply of power if needed. These load centers have a neutral bar on either side of the bus bars, so compatible AFCI (arc fault circuit interrupter) or GFCI (ground fault circuit interrupter) breakers can plug directly onto the bus and neutral bars without requiring a pigtail connection. They're used with QO series circuit breakers to protect circuits from overcurrents. These load centers are used in residential, commercial, and industrial applications.
