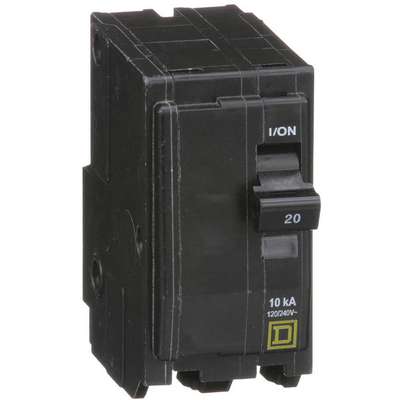

Plug In Circuit Breaker, QO, Number of Poles 2, 20 Amps, 120/240VAC, Standard



#918505-7 | Pkg Qty: 1
$71.00 pkg
| $71.00 ea
Item Number | 918505-7 |
Scanner Description | Circuit Breaker,20A,2P,10kA, |
Inventory Status | Drop Ship Item |
Weight | 0.5 lb |
Brand | SQUARE D |
Technical Specifications
AC Voltage Rating
120/240VAC
Max. DC Voltage (V)
48
AIR @ 48VDC
5kA
Max. Wire Size
8 AWG
Air @ 120VAC
10kA
Max. Wire Size (AWG)
8
Air @ 240VAC
10kA
Mfg Part Number
QO220
Amperage (A)
20
Min. Wire Size
14 AWG
Amps
20
Min. Wire Size (AWG)
14
Brand
SQUARE D
Number of Poles
2
Circuit Breaker Type
Standard
Pack Quantity
1
DC Voltage Rating
48VDC
Panelboard Mounting
Plug-In
Depth
2.91 in.
Phase
1
For Use With
QO Load Centers and NQOD Panelboards
Phase Connection
Any
Frame Size
100A/QO
Series
QO
High Amp Trip Setting
27
Standards
UL Listed, CSA Certified, HACR
Instantaneous Trip
Fixed
Terminal Connection
Screw Clamp
Item
Plug In Circuit Breaker
Type
Panelboard Mount
Length
3 in.
Voltage (V)
120<lt/>SNF/<gt/>240 VAC
Max. AIR Rating
10 kA
Width
1-1/2 in.
Product Description
QO® (Plug-In) and QOB (Bolt-On) Circuit Breakers
- 120/240VAC Visi-Trip® indicator Standard and VH breakers are UL Listed as HACR type
- Qwik-Open® breakers are for use only with QO load centers and NQ and NQOD panelboards. QOB breakers are for use only with NQ or NQOD panelboards. Rated for aluminum and copper conductors.
Documents
Item Barcode
Name | Item | Description | |
---|---|---|---|
![]() |
Grainger Dropship | 1D301 | Circuit Breaker,20A, |
![]() |
UNSPSC CODES | 39121601 | |
![]() |
VMRS (ATA) CODES | 053-006-009 | Circuit Breaker,20A, |
