SQUARE D

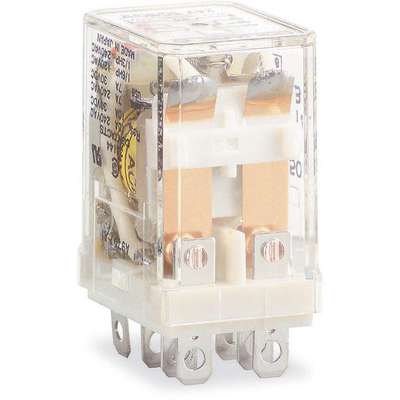

Square D 24VDC Coil Volts, General Purpose Relay, 10A @ 240VAC/10A @ 28VDC Contact Rating, Square

Hover over image to magnify
Relay,8Pin,Dpdt,10A,24VDC
Relay,8Pin,Dpdt,10A,24VDC
Square D 24VDC Coil Volts, General Purpose Relay, 10A @ 240VAC/10A @ 28VDC Contact Rating, Square Video

#927492-1 | Pkg Qty: 1

$61.13 pkg | $61.13 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
AC Contact Rating
10 A @ 240 V
Number of Pins
8
Base Type
Square
Number of Poles
2
Brand
SQUARE D
Overall Height
1.77 in.
Coil Volts
24 VDC
Package Quantity
1
Contact Form
DPDT
Pins
8
Contact Material
Silver Tin Oxide
Push To Test
No
Contact Rating
10 A @ 240 VAC/30 VDC
Relay Power Consumption
0.9 W
DC Contact Rating
10 A @ 28 V
Resistive Contact Amp Rating
10A @ 120/240VAC, 10A @ 30VDC
Electrical Connection
0.187 in. Solder Terminals
Shipping Weight
.09 lb.
Flange Location
Side
Socket
Mfr. No. 8501NR42
Item
General Purpose Relay
Socket Code
C
Mfr. Part Number
8501RSD42V53
Status Indicator
No
Mounting
Plug In
Warranty
5ZZX3
General
AC Contact Rating - Relay
10A @ 240V
Mounting - Relay
Plug In
Base Type - Plug In Relay
Square
Number of Pins - Relay
8
Body Depth - Relay
1.1 in
Overall Height - Relay
1.77 in
Body Height - Relay
1.42 in
Power Consumption - Relay
0.9 W
Body Width - Relay
0.83 in
Socket Code - Relay
D
Contact Form - Relay
DPDT
Standards
CSA Certified, CE Marked
DC Contact Rating - Relay
10A @ 28V

Product Description

General Purpose Relay, Coil Volts 24V DC, AC Contact Rating - Relay 10A @ 240V, DC Contact Rating - Relay 10A @ 28V, Base Type - Plug In Relay Square, Number of Pins - Relay 8, Contact Form - Relay DPDT, Mounting - Relay Plug In, Socket Code - Relay D, Power Consumption - Relay 0.9 W, Contact Material Silver Tin Oxide, Status Indicator No, Push To Test No
