SQUARE D

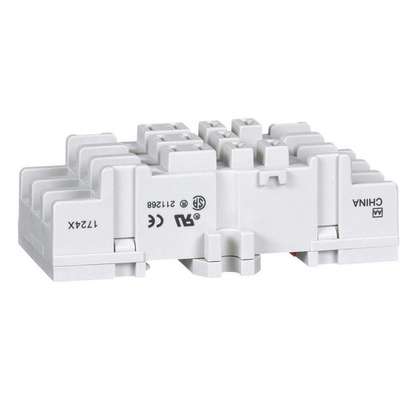

Square D Relay Socket, Socket Type: Standard, Socket Style: Square, Number of Pins: 11

Hover over image to magnify
Rlay Socket,Standrd,Square,11
PI_Asset_1370597
Rlay Socket,Standrd,Square,11
PI_Asset_1370597

#917516-8 | Pkg Qty: 1

$37.19 pkg | $37.19 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Amps AC
15
Number of Pins
11
Base Style
Square
Pack Quantity
1
Brand
SQUARE D
Relay Socket Type
Elevator
Color Family
White
Shipping Weight
.2 lb.
Contact Form
3PDT
Socket Code
C
Contact Rating
15 A @ 300 VAC
Socket Style
Square
Depth
1.03 in.
Socket Type
Standard
Electrical Connection
Screw Clamp
Status Indicator
None
Height
1.03 in.
Terminals
Screw
Item
Relay Socket
Type
Square
Length
3.13 in.
Voltage
250 VAC
Mfr. Part Number
8501NR82
Width
1.7 in.
Mounting
DIN Rail/Surface
General
Base Style - Relay Socket
Square
Mounting - Relay
DIN Rail, Surface
Contact Form - Relay Socket
3PDT
Number of Pins - Relay
11
Contact Rating - Relay Socket
15A @ 300V AC
Socket Code - Relay
C
Depth - Relay Socket
3.14 in
Socket Type - Relay
Elevator
Electrical Connection - Relay Socket
Screw Clamp
Standards
CE, CSA, RoHS, UL Recognized
Height - Relay Socket
1.03 in
Width - Relay Socket
1.69 in

Product Description

Relay Socket, Socket Type - Relay Elevator, Base Style - Relay Socket Square, Number of Pins - Relay 11, Contact Form - Relay Socket 3PDT, Contact Rating - Relay Socket 15A @ 300V AC, Mounting - Relay DIN Rail, Surface, Socket Code - Relay C, Electrical Connection - Relay Socket Screw Clamp, Height - Relay Socket 1.03 in, Width - Relay Socket 1.69 in, Depth - Relay Socket 3.14 in, Status Indicator None, Color White, Standards CE, CSA, RoHS, UL Recognized

Item Barcode
9175168
Rlay Socket,Standrd,Square,11
 NameItemDescription
Grainger DropshipGrainger Dropship5B583Rlay Socket, Standrd,
UNSPSC CODESUNSPSC CODES39122335
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Rlay Socket, Standrd,
