HUBBELL WIRING DEVICE-KELLEMS

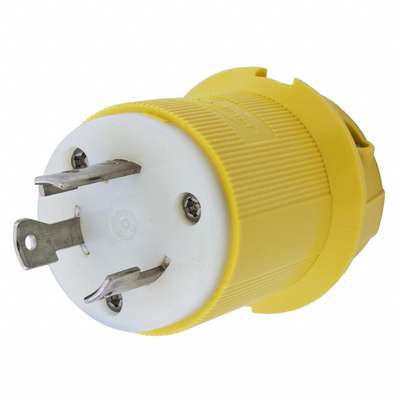

Hubbell Wiring Device-Kellems 30A Marine Grade Non-Shrouded Locking Plug, Yellow; NEMA Configuration: L6-30P
#926990-4 | Pkg Qty: 1
$51.99 pkg | $51.99 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amperage
30 A
Maximum Operating Temperature
75 °C
Antimicrobial
No
Maximum Wire Size
8 AWG
Blade Material
Nickel-Plated Brass
Mfr. Part Number
HBL26CM21
Body Length
2-3/4 in.
Minimum Operating Temperature
-40 °C
Boot Code
B
Minimum Wire Size
16 AWG
Brand
HUBBELL WIRING DEVICE-KELLEMS
NEMA Configuration - Plugs & Connectors
L6-30
Color Family
Yellow
NEMA Plug Configuration
L6-30P
Connection Orientation
Straight
Number of Blades
3
Cord Size
0.360 in. to 0.930 in.
Number of Poles
2
Corrosion Resistant
Yes
Number of Wires
3
Current Rating
30 A
Outside Diameter
2.26 in.
Description
Corrosion Resistant, Grounding
Overall Length
2.75 in.
Face Diameter
1.97 in.
Package Quantity
1
For Maximum Cable Diameter
0.93 in.
Phase
Single
For Minimum Cable Diameter
0.36 in.
Polarized
Yes
Grade
Marine
Shipping Weight
.25 lb.
Grounding
Grounded
Shrouded
No
HP
2 HP
Special Features
Corrosion Resistant
Horsepower
2 hp
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Housing Color
Yellow
Subcategory
Plugs
Housing Material
Nylon
UL 94 Flammability Rating
HB
IP Rating
IP20
Voltage
250V AC
Item
Locking Plug
Wire Connection Type
Screw Terminals
Material
Nylon
Wiring Style
Standard
General
Amps - Plugs and Receptacles
30
NEMA Plug Configuration - Plugs and Receptacles
L6-30P
Grade - Plugs and Receptacles
Marine
Special Features
Corrosion Resistant
HP
2.0
Voltage - Plugs and Receptacles
250V AC
Product Description
NEMA Twist-Lock® Devices
- Premium-quality industrial wiring devices feature a powerful cord grip, 1-pc. dust shield, tough nylon housing, visible identification, and roomy wiring chamber.
