HUBBELL WIRING DEVICE-KELLEMS

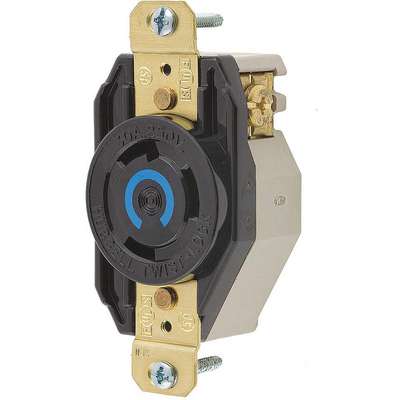

Hubbell Wiring Device-Kellems Black Locking Receptacle, 30 Amps, 250VAC Voltage, NEMA Configuration: L6-30R
Hover over image to magnify
#912056-3 | Pkg Qty: 1
$67.89 pkg | $67.89 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
AFCI
No
Maximum Wire Size
8 AWG
Accessory Group
B
Mfr. Part Number
HBL2620
Amperage
30 A
Minimum Operating Temperature
-40 °C
Amps
30 A
Minimum Wire Size
16 AWG
Brand
HUBBELL WIRING DEVICE-KELLEMS
Mount Type
Flush
Color Family
Black
Mounting Type
Flush Mount
Connection Orientation
Straight
NEMA Configuration - Plugs & Connectors
L6-30
Contact Material
Brass
NEMA Enclosure Rating
1
Cover Type
No Cover
NEMA Rating
1
Current Rating
30 A
NEMA Receptacle Configuration
L6-30R
Flange Type
Non-Flanged
Number of Gangs
1
Flange Width
Not Applicable
Number of Poles
2
For Environment
Dry
Number of Wires
3
For Location
Indoor
Package Quantity
1
Grade
Industrial
Phase
Single
Grounding
Grounded
Plate Code
B
HP
2 HP
Polarized
Yes
Horsepower
2 hp
Shipping Weight
.3 lb.
Housing Color
Black
Shrouded
No
Housing Material
Nylon
Special Features
Corrosion Resistant
IP Rating
IP20
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Includes
Mounting Hardware
Sub-Category
Single Receptacles
Includes Mounting Hardware
Yes
UL 94 Flammability Rating
V-2
Item
Locking Receptacle
Voltage
250V AC
Material
Nylon
Voltage Rating
250V AC
Material of Construction
Nylon
Wire Connection Type
Screw Terminals
Maximum Operating Temperature
75 °C
Wiring Style
Standard
General
HP
2.0
Special Features
Corrosion Resistant
Product Description
NEMA Twist-Lock® Devices
- Premium-quality industrial wiring devices feature a powerful cord grip, 1-pc. dust shield, tough nylon housing, visible identification, and roomy wiring chamber.
Expertly Selected Product Pairings
Item Barcode
Receptacle,Single,30 A,L6-30
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 5A086 | Receptacle, Single,30 A, |
 | UNSPSC CODES | 39121406 | |
 | VMRS (ATA) CODES | 032-001-017 | Receptacle, Single,30 A, |
