VIBRA-TITE

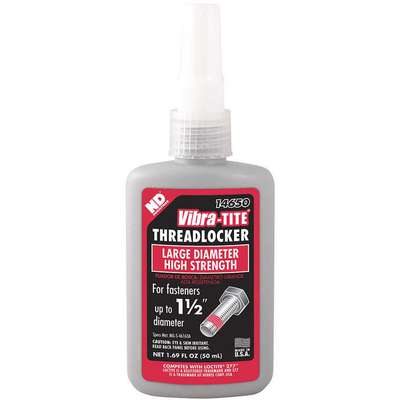

146 Series High-Strength Threadlocker, Red Liquid, 50mL Bottle

Hover over image to magnify
Threadlocker,Red,Bottle,50mL
Threadlocker,Red,Bottle,50mL

#926137-7 | Pkg Qty: 1

$23.17 pkg | $23.17 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Appearance
Red
Net Weight
50 mL
Begins to Harden
9 min.
Package Quantity
1
Brand
VIBRA-TITE
Performance Temperature Range
-60 deg. F to 300 deg. F
Chemical Type
Anaerobic
Physical Form
Liquid
Color Family
Red
Removable With
Heat and Hand Tools
Flash Point
268 deg. F
Series
146
For Fastener Diameter
Up to 1-1/2 in.
Shipping Weight
.17 lb.
Full Cure
24 hr.
Temperature Range
-60 to 300 deg. F
Full Cure Time
1 day
Threadlocker Classification
Threadlocker
Gap Fill
0.01 in.
Threadlocker Disassembly
Permanent
Item
High-Strength Threadlocker
Threadlocker Strength
High Strength
Mfr. Part Number
14650
Viscosity
7,000 cP
General
Application
General Purpose Bolts and Nuts
Minimum Viscosity
7,000 cps
Breakaway Torque
300 in-lb
Pack Size
1 EA
Breakaway Torque Range
201 in-lb to 300 in-lb
Prevailing Torque
250 in-lb
Compatible Materials
Bronze, Copper, Iron, Manganese, Nickel, Steel
Product Form
Liquid
Compatible Primer ( Part Number)
4KL11
Removal Method
Hand Tool and Heat
Compatible Primer Series
Loctite 7649
Standards
MIL-S-46163A, ASTM D-5363
Container Size Range
Over 1.1 oz
Storage Requirements
14 Degrees to 86 Degrees F
Container Size and Type
1.69 fl oz Bottle
Torque and Strength
300 in-lb High
Container and Size
Bottle Over 1.1 oz
VOC Content Range
10 g/L and Under
Cure Type
Anaerobic
Working Time
9 min
For Material Type
Brass, Bronze, Copper, Iron, Manganese, Monel, Nickel, Steel
Working Time Range
6 min to 10 min
For Maximum Thread Diameter
1 1/2 in

Product Description

Threadlocker, Threadlocker, Threadlocker Strength High, Threadlocker Color Red, Threadlocker Disassembly Permanent, Physical Form Liquid, Threadlocker Container Bottle, 50 mL, Chemical Type Anaerobic, For Fastener Dia. Up to 1-1/2 in, Begins to Harden 9 min, Series 146, Gap Fill 0.01 in, Full Cure 24 hr, Temp. Range -60 Degrees to 300 Degrees F, Flash Point 268 Degrees F, Specific Gravity 1.1, Viscosity 7000 cP, Removable With Heat and Hand Tools
