HUBBELL WIRING DEVICE-KELLEMS

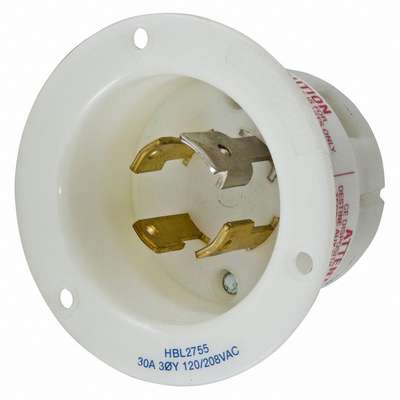

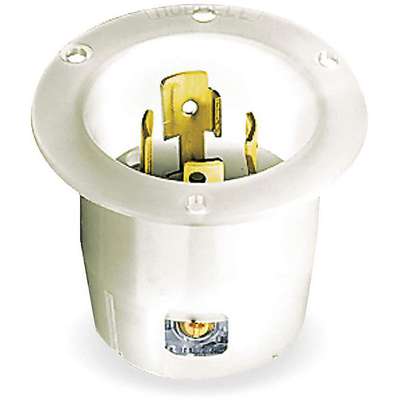

Hubbell Wiring Device-Kellems White Flanged Locking Inlet, 30 Amps, 120/208 VAC Voltage, NEMA Configuration: L18-30P
#925708-1Pkg Qty: 1
$95.50 pkg
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amperage
30 A
Amps
30 A
Brand
HUBBELL WIRING DEVICE-KELLEMS
Color Family
White
Horsepower
3 hp
Housing Material
Nylon
IP Rating
IP20
Item
Flanged Locking Inlet
Mfr. Part Number
HBL2755
Mounting Type
Flush Mount
NEMA Configuration - Plugs & Connectors
L18-30
NEMA Rating
12, 4X
Number of Poles
4
Number of Wires
4
Package Quantity
1
Phase
Three
Product Type
Inlets
Shipping Weight
.3 lb.
Voltage
120/208V AC
Wiring Style
Standard
Amperage
30 A
NEMA Configuration - Plugs & Connectors
L18-30
Amps
30 A
NEMA Rating
12, 4X
Brand
HUBBELL WIRING DEVICE-KELLEMS
Number of Poles
4
Color Family
White
Number of Wires
4
Horsepower
3 hp
Package Quantity
1
Housing Material
Nylon
Phase
Three
IP Rating
IP20
Product Type
Inlets
Item
Flanged Locking Inlet
Shipping Weight
.3 lb.
Mfr. Part Number
HBL2755
Voltage
120/208V AC
Mounting Type
Flush Mount
Wiring Style
Standard
General
Accessory Group
E
Blade Material
Brass
Boot Code
E
Current Rating
30 A
Face Diameter
2.23 in.
Face Plate Width
0.09 in.
Features
Accepts Slotted, Phillips, and Robertson Head Drivers
Flange Diameter
3.06 in.
Flange Material
Nylon
Flange Type
Flanged
For Environment
Dry
Grade
General Use
Grounding
Non-Grounded
Housing Color
White
Includes
Mounting Screws
Material
Nylon
Material of Construction
Nylon
Maximum Operating Temperature
75 °C
Maximum Wire Size
8 AWG
Minimum Operating Temperature
-40 °C
Minimum Wire Size
16 AWG
NEMA Plug Configuration
L18-30P
Number of Blades
4
Overall Depth
2.27 in.
Shrouded
No
Special Features
With Cover
Standards
CSA C22.2 No. 42, Federal Specification W-C-596, UL 498
UL 94 Flammability Rating
HB
Voltage Rating
120/208V AC
Wire Connection Type
Screw Terminals
Accessory Group
E
Material
Nylon
Blade Material
Brass
Material of Construction
Nylon
Boot Code
E
Maximum Operating Temperature
75 °C
Current Rating
30 A
Maximum Wire Size
8 AWG
Face Diameter
2.23 in.
Minimum Operating Temperature
-40 °C
Face Plate Width
0.09 in.
Minimum Wire Size
16 AWG
Features
Accepts Slotted, Phillips, and Robertson Head Drivers
NEMA Plug Configuration
L18-30P
Flange Diameter
3.06 in.
Number of Blades
4
Flange Material
Nylon
Overall Depth
2.27 in.
Flange Type
Flanged
Shrouded
No
For Environment
Dry
Special Features
With Cover
Grade
General Use
Standards
CSA C22.2 No. 42, Federal Specification W-C-596, UL 498
Grounding
Non-Grounded
UL 94 Flammability Rating
HB
Housing Color
White
Voltage Rating
120/208V AC
Includes
Mounting Screws
Wire Connection Type
Screw Terminals
Product Description
NEMA Twist-Lock® Devices
- Premium-quality industrial wiring devices feature a powerful cord grip, 1-pc. dust shield, tough nylon housing, visible identification, and roomy wiring chamber.
