HUBBELL WIRING DEVICE-KELLEMS

Hubbell Wiring Device-Kellems 30 Amp Industrial Grade Locking Connector, L16-30R NEMA Configuration, Black/White

Hover over image to magnify

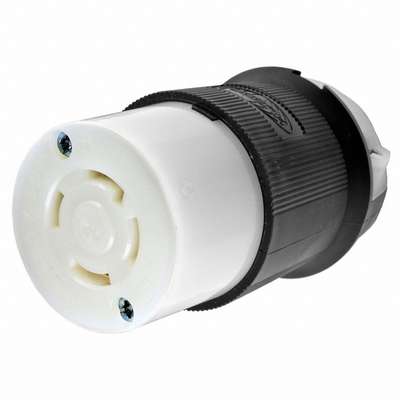

Connector Body,30 A,L16-30
PI_Asset_1982264
PI_Asset_1988221
PI_Asset_1991259
Connector Body,30 A,L16-30
PI_Asset_1982264
PI_Asset_1988221
PI_Asset_1991259

#913116-9 | Pkg Qty: 1

$168.47 pkg | $168.47 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Accessory Group
C
Maximum Operating Temperature
75 °C
Amperage
30 A
Maximum Wire Size
8 AWG
Amps
30 A
Mfr. Part Number
HBL2733
Antimicrobial
No
Midget Locking
No
Boot Code
C
Minimum Operating Temperature
-40 °C
Brand
HUBBELL WIRING DEVICE-KELLEMS
Minimum Wire Size
16 AWG
Cap Type
No Cap or Cover
NEMA Configuration - Plugs & Connectors
L16-30
Color Family
Black / White
NEMA Plug Configuration
L16-30R
Connection Orientation
Straight
NEMA Receptacle Configuration
L16-30R
Contact Material
Brass
Number of Poles
3
Cord Size
0.350 in to 1.150 in
Number of Wires
4
Corrosion Resistant
No
Outside Diameter
2.33 in.
Current Rating
30 A
Overall Length
2.33 in.
Description
Insulgrip, Grounding
Package Quantity
1
For Environment
Dry
Phase
Three
For Location
Indoor
Power Indicating Light
No
For Maximum Cable Diameter
1.15 in.
Power Indicator
No
For Minimum Cable Diameter
0.35 in.
Shipping Weight
.45 lb.
Grade
Industrial/Commercial
Shrouded
No
Grounding
Grounded
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
HP
10 HP
Subcategory
Connectors
Horsepower
10 hp
Type
Insulgrip Twist Lock
Housing Material
Nylon
UL 94 Flammability Rating
HB
IP Rating
IP20
Voltage
480VAC
Item
Locking Connector
Voltage Rating
480V AC
Material
Nylon
Wire Connection Type
Screw Terminals
Material of Construction
Nylon
Wiring Style
Standard
General
Amps - Plugs and Receptacles
30
NEMA Plug Configuration - Plugs and Receptacles
L16-30R
Grade - Plugs and Receptacles
Industrial
Voltage - Plugs and Receptacles
480V AC
HP
10.0

Product Description

NEMA Twist-Lock® Devices

  • Premium-quality industrial wiring devices feature a powerful cord grip, 1-pc. dust shield, tough nylon housing, visible identification, and roomy wiring chamber.
