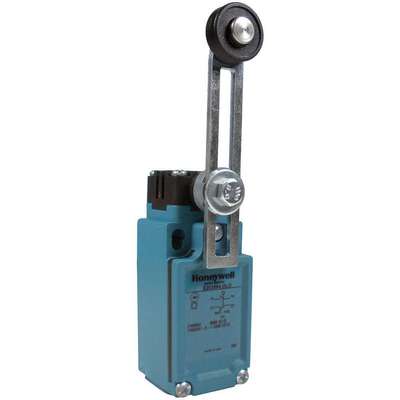

Rotary, Roller Lever General Purpose Limit Switch; Location: Side, Contact Form: 1NC/1NO, CW, CCW Mo

Rotary, Roller Lever General Purpose Limit Switch; Location: Side, Contact Form: 1NC/1NO, CW, CCW Mo
Global Limit Switch
PI_Asset_1362825

#924626-2 | Pkg Qty: 1

$73.72 pkg | $73.72 ea
Item Number 924626-2
Scanner Description Global Limit Switch
Inventory Status Drop Ship Item
Weight 0.65 lb
Brand HONEYWELL MICRO SWITCH

Technical Specifications

AC Contact Rating
10A @ 300V
Item
General Purpose Limit Switch
Actuator Length
1.34 in. to 3.11 in.
Limit Switch Style
General Purpose Limit Switch
Actuator Location
Side
Mfr. Part Number
GLCA01A2A
Actuator Style
Rotary Lever Arm
Movement
CW, CCW
Amperage
10
NEMA Rating
1, 4, 12, 13
Amps
10
Operating Force
1.10 in.-lb.
Arm Material
Steel
Operating Temperature Range
-40° to 185°F
Basic Actuator Style
Rotary
Operating Temperature Range (F)
-40 to 185
Body Depth
1.18 in.
Pack Quantity
1
Body Height
2.17 in.
Roller Diameter
3/4 in.
Body Material
Zinc Die Cast
Roller Material
Nylon
Body Style
Miniature
Roller Width
0.25 in.
Body Width
1.2 in.
Series
GLC/GLS
Boot Sealed Actuator
No
Special Features
Zinc Die-Cast EN 50047 Housing, 0.5 in - 14 NPT Conduit, shock 50 g per IEC 68-2-27c (w/o Actuator), vibration 10 g per IEC 68-2-6 (w/o Actuator), Expected Mechanical Life 10 Million Operations
Brand
HONEYWELL MICRO SWITCH
Standards
UL, CE, CSA, CCC. IEC 947-5-1, EN60947-5-1, UL508, UL746-C
Contact Form
1NC/1NO, SPDT, Snap Action
Style
Mechanical Actuator Operated
Contact Type
Snap Action
Threaded for Panel Mounting
No
DC Contact Rating
10A @ 250V
Travel
Maximum Pretravel 26°, Minimum Over Travel 49°, Differential Travel 11.5°
Depth
1.18 in.
Type
Side Rotary Actuator; Adjustable Roller
Description/Special Features
Zinc Die-Cast EN 50047 Housing, 0.5 in - 14 NPT Conduit, shock 50 g per IEC 68-2-27c (w/o Actuator), vibration 10 g per IEC 68-2-6 (w/o Actuator), Expected Mechanical Life 10 Million Operations
Voltage
300VAC/250 VDC
Electrical Connection
Screw Terminals
Voltage Rating
300VAC/250VDC
Hazardous Location
No
Width
1.2 in.
Height
2.16 in.
Wiring Entry
1/2 in. NPT
IP Rating
67

Product Description

Designed for applications including machine tools, material handling, equipment, packaging machinery, textile machinery, construction vehicles, and lift trucks, this switch features rugged housing and galvanically isolated contacts. The contacts allow the switch to control separate circuits. The switch is engineered to perform up to 10 million operations.
