HUBBELL WIRING DEVICE-KELLEMS

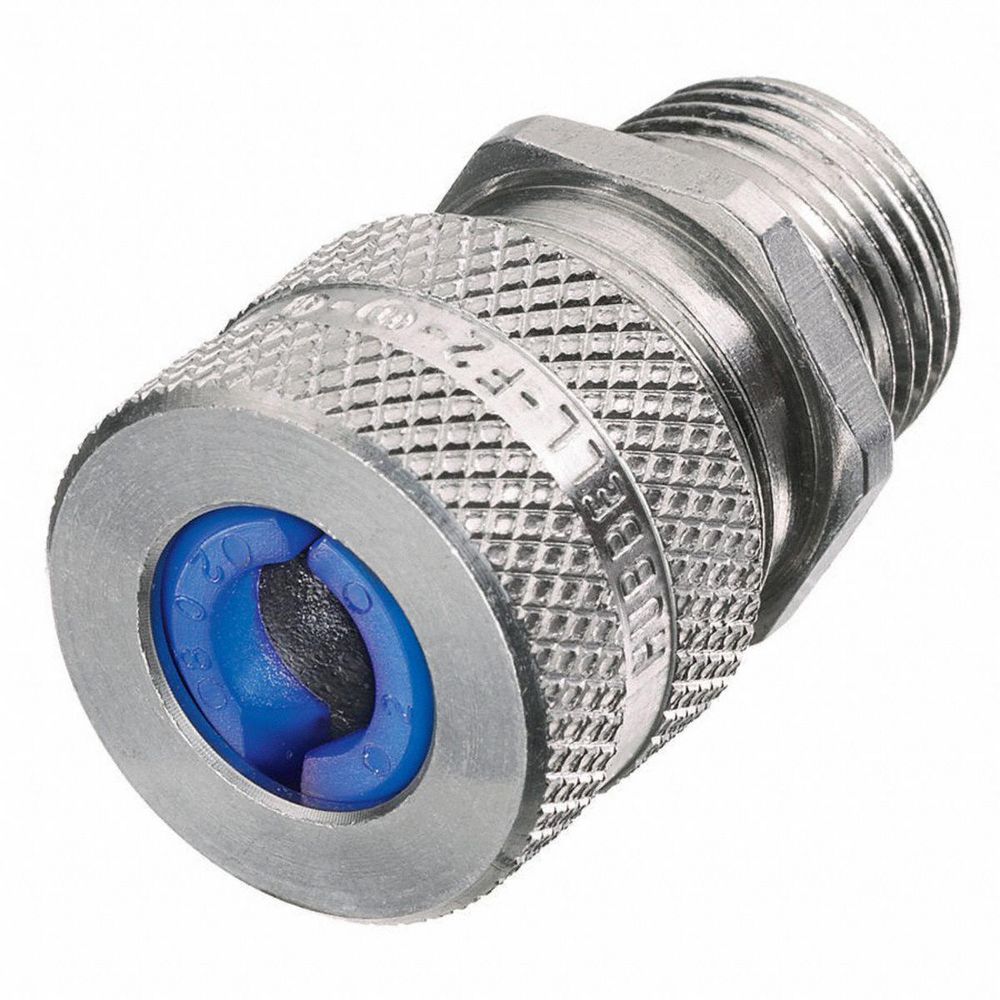

Hubbell Wiring Device-Kellems Liquid Tight Cord Connector, 0.38" to 0.50" Cord Dia., 1/2" MNPT Box Connection

Hover over image to magnify
Cord Connector,.375-.5 In,L 1.
PI_Asset_1982028
Cord Connector,.375-.5 In,L 1.
PI_Asset_1982028

#912096 | Pkg Qty: 1

$13.63 pkg | $13.63 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Body Color
Silver
Length
1-21/32 in.
Body Material
Aluminum
Material
Aluminum
Box Connection
1/2 in. MNPT
Material of Construction
Aluminum
Brand
HUBBELL WIRING DEVICE-KELLEMS
Maximum Operating Temperature
225 deg. F
Collar Material
Aluminum
Mesh Length
No Strain Relief Mesh
Color Family
Blue
Mesh Material
No Strain Relief Mesh
Conduit Size
1/2 in.
Mfr. Part Number
SHC1023
Connector Type
Straight
Minimum Operating Temperature
-30 deg. F
Cord Diameter Range
0.38 in. to 0.50 in.
NEMA Rating
NEMA 12, NEMA 13, NEMA 4, NEMA 4X
Gland Color Code
Blue
Number of Cords
1
Hazardous Location Rating
Not Rated
Overall Length
1-5/8 in.
Hub Size
1/2 in.
Package Quantity
1
IP Rating
IP66
Shipping Weight
.05 lb.
Insulated
No
Thread Type
NPT
Item
Liquid Tight Cord Connector
Type
Strain Relief
General
Compatible Conduit Trade Size
1/2 in
Form Size
F2
Compatible Conduit Type
Liquid Tight Cord Connector
Length - Box to End of Connector
1 1/8 in
Connection Orientation
Straight
Liquid Tight
Yes
Environmental Rating
Hazardous Locations
Standards
CSA LR27378/UL E54218(M)
External Strain Relief Length
No External Strain Relief
Strain Relief Type
No External Strain Relief
For Maximum Cable OD
0.5 in
Style - Connector
Straight
For Minimum Cable OD
0.38 in
Thread Gender
Male
For Use With
Kellems Wire Management
Thread-Type
NPT Thread

Product Description

The proprietary split-hinge Gotcha® ring, color-coded by cord size, grips the conductor through the cord jacket. The factory-lubricated bushing provides even compression, ensures a liquidtight seal around the cord, and minimizes tension on the terminals. Machined metal is more durable and reliable than cast metal.
