HONEYWELL MICRO SWITCH

Honeywell Micro Switch Plunger Explosion Proof Limit Switch; Location: Top, Contact Form: 1NC/1NO, Linear Movement

Hover over image to magnify

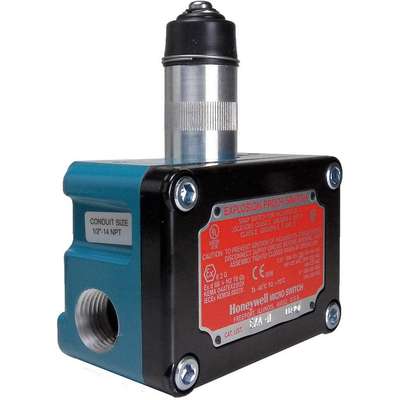

Explosion Proof Limit Switch
Explosion Proof Limit Switch

#924491-3 | Pkg Qty: 1

$748.06 pkg | $748.06 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
AC Contact Rating
10 A @ 480 V
Hazardous Location
Yes
Actuator Length
2.06 in.
Height
2.56 in.
Actuator Location
Top
IP Rating
No IP Rating
Actuator Style
Plunger, Boot Sealed
Item
Explosion Proof Limit Switch
Amperage
15 Ind./0.5 Res./0.25 Res. A
Limit Switch Style
Explosion Proof Limit Switch
Basic Actuator Style
Plunger
Mfr. Part Number
EX-N15
Body Depth
2.02 in.
Movement
Linear
Body Height
2.56 in.
NEMA Rating
1, 7
Body Material
Aluminum
Operating Force
3.00 lb.
Body Style
Miniature
Operating Temperature Range
-4 deg. F to 160 deg. F
Body Width
2.78 in.
Package Quantity
1
Boot Sealed Actuator
Yes
Series
Ex
Brand
HONEYWELL MICRO SWITCH
Shipping Weight
1.44 lb.
Contact Form
1NC/1NO, SPDT, Snap Action
Style
Mechanical Actuator Operated
Contact Type
Snap Action
Threaded for Panel Mounting
No
DC Contact Rating
0.25 A @ 250 V
Travel
Maximum Pretravel 0.078 in., Minimum Over Travel 0.187 in., Differential Travel 0.004 in.
Depth
2.02 in.
Type
Top Pin Plunger; Boot Sealed, Standard
Description/Special Features
Aluminum EX; 0.5 in - 14NPT Conduit; Boot Sealed Plunger; Explosion-Proof Limit Switch
Voltage Rating
120/250/480 VAC/120/250 VDC
Electrical Connection
Screw Terminals
Width
2.78 in.
Footnotes
Boot Sealed Plunger
Wiring Entry
1/2 in.-14 NPT
General
AC Contact Rating - Limit Switch
10A @ 480V
DC Contact Rating - Limit Switch
0.25A @ 250V
Actuator Length - Limit Switch
2.06 in
Mounting - Limit Switch
Surface
Actuator Location - Limit Switch
Top
Mounting Hole - Limit Switch
(2) 10-32 Thread
Actuator Style - Limit Switch
Plunger
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Basic Actuator Style - Limit Switch
Plunger
Mounting Hole Spacing - Limit Switch
2.06 in
Body Depth - Limit Switch
2.02 in
Operating Temp. Range
-40° to 160°F
Body Height - Limit Switch
2.56 in
Special Features
Aluminum EX; 0.5 in - 14NPT Conduit; Boot Sealed Plunger; Explosion-Proof Limit Switch
Body Style - Limit Switch
Miniature
Standards
UL, CSA, ATEX, IEC Ex
Body Width - Limit Switch
2.78 in
Stem Thread - Limit Switch
No Stem
Boot Sealed Actuator - Limit Switch
Yes
Threaded for Panel Mounting - Limit Switch
No
Contact Form- Switches
1NC/1NO

Product Description

Explosion-proof housing helps to make this hazardous location limit switch suitable for use in dangerous indoor and outdoor locations. The flame path in the switch housing is engineered to contain and cool hot gases and fumes that would otherwise cause an explosion outside the switch. Use in grain elevators, offshore drilling, petrochemical and waste treatment plants, paint booths, hazardous waste-handling facilities, pipeline valves, and maintenance equipment. Applications include control valves and actuators, petrochemical plants, conveyors, and material handling.
