RACO

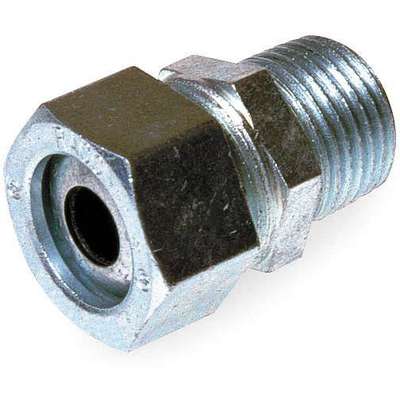

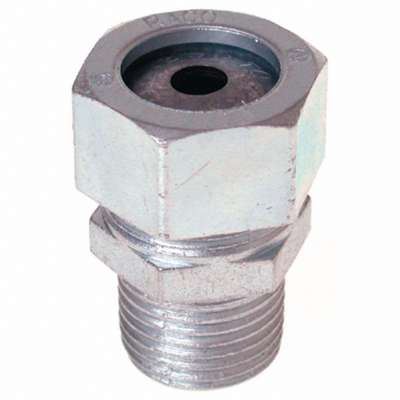

Raco Enhanced Rating Cord Connector, 0.38" to 0.50" Cord Dia., 1/2" MNPT Box Connection
#920587Pkg Qty: 1
$7.30 pkg
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Body Color
Silver
Box Connection
1/2 in. MNPT
Brand
RACO
Color Family
Silver
Conduit Size
1/2 in.
Connector Type
Straight
Cord Diameter Range
0.38 in. to 0.50 in.
Item
Liquid Tight Cord Connector
Length
1-7/16 in.
Material
Malleable Iron/Steel
Material of Construction
Steel/Malleable Iron
Mesh Length
No Strain Relief Mesh
Mfr. Part Number
3702-5
Number of Cords
1
Package Quantity
1
Shipping Weight
.18 lb.
Body Color
Silver
Length
1-7/16 in.
Box Connection
1/2 in. MNPT
Material
Malleable Iron/Steel
Brand
RACO
Material of Construction
Steel/Malleable Iron
Color Family
Silver
Mesh Length
No Strain Relief Mesh
Conduit Size
1/2 in.
Mfr. Part Number
3702-5
Connector Type
Straight
Number of Cords
1
Cord Diameter Range
0.38 in. to 0.50 in.
Package Quantity
1
Item
Liquid Tight Cord Connector
Shipping Weight
.18 lb.
General
Body Material
Steel
Collar Material
Steel
Compatible Conduit Trade Size
1/2 in
For Maximum Cable OD
0.5 in
For Minimum Cable OD
0.38 in
Form Size
F2
Gland Color Code
Imprinted
Grommet Material
Neoprene
Hazardous Location Rating
Class I, Division 2; Class II, Division 1 and 2; Class III Division 1 and 2
Hub Size
1/2 in.
Insulated
No
Length - Box to End of Connector
1 in
Liquid Tight
Yes
Mesh Material
No Strain Relief Mesh
Standards
cULus
Thread Type
NPT
Thread-Type
NPT Thread
Type
Liquidtight Strain Relief
Body Material
Steel
Hub Size
1/2 in.
Collar Material
Steel
Insulated
No
Compatible Conduit Trade Size
1/2 in
Length - Box to End of Connector
1 in
For Maximum Cable OD
0.5 in
Liquid Tight
Yes
For Minimum Cable OD
0.38 in
Mesh Material
No Strain Relief Mesh
Form Size
F2
Standards
cULus
Gland Color Code
Imprinted
Thread Type
NPT
Grommet Material
Neoprene
Thread-Type
NPT Thread
Hazardous Location Rating
Class I, Division 2; Class II, Division 1 and 2; Class III Division 1 and 2
Type
Liquidtight Strain Relief
Product Description
Featuring a liquid-tight seal, this cord connector is suitable for use in wet or dry locations. It provides strain relief termination for flexible cord and cable.
