SOUTHWIRE

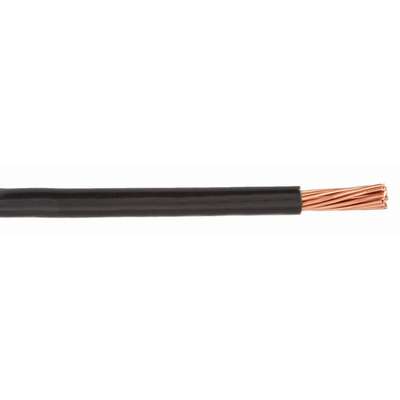

Southwire Company 500 ft. Stranded Building Wire with THHN Wire Type and 8 AWG Wire Size, Black

Building Wire,Thhn,8 Awg,Black,
PI_Asset_1354218

#920414-4Pkg Qty: 1

$394.90 pkg
Spool Length : 500 ft.
Color Family : Black
Black
Blue
Brown
Green
Orange
Red
White
Yellow

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
SOUTHWIRE
Color Family
Black
Item
Building Wire
Jacket Color
Black
Length
500 ft.
Maximum Amps
40 A
Mfr. Part Number
20488312
Nominal Outside Diameter
0.21 in.
Number of Conductors
1
Package Quantity
1
Packaging
Spool
Shipping Weight
32.25 lb.
Spool Length
500 ft.
Stranded / Solid
Stranded
Temperature Rating
140deg. F
Type
Stranded
Voltage
600 VAC
Wire Color
Black
Wire Size
8 AWG
Wire and Cable Item
Building Wire
Wire/Cable Insulation Material
PVC
Wire/Cable Jacket Material
Nylon
Wire/Cable Size
8 AWG
Wire/Cable Type
THHN

Product Description

Thermoplastic high-heat-resistant nylon (THHN) building wire is a coated wire typically run through conduit or cable trays. This general purpose wire is used to supply an electrical current in a range of indoor wiring projects, including control circuits and appliances. It has a durable nylon jacket that resists abrasion, protects against shock, and shields the thermoplastic insulation and metal conductor from damage.

Building wire and cable carry electrical current from a power source to a device in a building, such as an outlet or light fixture. Building wire is typically run through conduit, cable trays, or raceways. Building cable consists of multiple strands of wire bundled inside a thermoplastic or metal sheath. Building wire and cable are typically used to run new circuits or extend old circuits inside walls and ceilings in commercial, industrial, and residential properties.
