HONEYWELL MICRO SWITCH

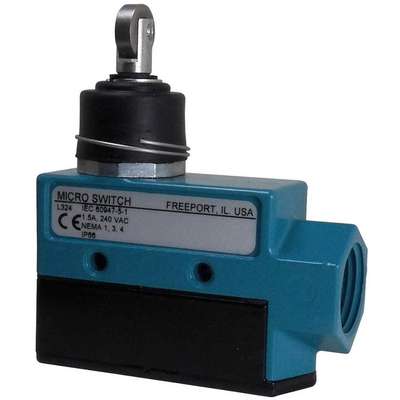

Honeywell Micro Switch Plunger, Cross Roller General Purpose Limit Switch; Location: Top, Contact Form: 1NC/1NO, Release Fo
Hover over image to magnify
#918299 | Pkg Qty: 1
$201.46 pkg | $201.46 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
AC Contact Rating
15 A @ 600 V
IP Rating
66
Actuator Length
1.48 in.
Item
General Purpose Limit Switch
Actuator Location
Top
Limit Switch Style
General Purpose Limit Switch
Actuator Style
Cross Roller Plunger, Boot Sealed
Mfr. Part Number
BZE6-2RN81
Amperage
15 Ind./2 Ind./0.5 Res./0.25 Res A
Movement
Release Force 0.25 lb. min.
Basic Actuator Style
Plunger
NEMA Rating
1, 3, 4
Body Depth
1 in.
Operating Force
9 oz. to 24 oz.
Body Height
1-3/4 in.
Operating Temperature Range
-2 deg. F to 160 deg. F
Body Material
Zinc Die Cast
Package Quantity
1
Body Style
Miniature
Roller Diameter
1/2 in.
Body Width
3.04 in.
Roller Material
Steel
Boot Sealed Actuator
Yes
Roller Width
0.18 in.
Brand
HONEYWELL MICRO SWITCH
Series
Bz
Contact Form
1NC/1NO, SPDT, Momentary, Silver Contacts
Shipping Weight
.7 lb.
Contact Type
Momentary, Silver Contacts
Style
Mechanical Actuator Operated
DC Contact Rating
2 A @ 250 V
Threaded for Panel Mounting
No
Depth
3.04 in.
Travel
Maximum Pretravel 0.078 in., Minimum Over Travel 0.219 in., Differential Travel 0.0004 in. to 0.0020 in.
Description/Special Features
Zinc Die-Cast Housing, 0.5 In - 14NPT Conduit
Type
Cross Roller Plunger, Perpendicular (90 Rotated Plunger), With Seal Boot
Electrical Connection
Screw Terminals
Voltage
600 VAC/250 VDC
Footnotes
Installed With #6 Screws
Voltage Rating
600 VAC/250 VDC
Hazardous Location
No
Width
1 in.
Height
2-1/2 in.
Wiring Entry
1/2 in. NPT
General
AC Contact Rating - Limit Switch
15A @ 600V
DC Contact Rating - Limit Switch
2A @ 250V
Actuator Length - Limit Switch
1.48 in
Mounting - Limit Switch
Surface
Actuator Location - Limit Switch
Top
Mounting Hole - Limit Switch
(2) 0.22 in dia
Actuator Style - Limit Switch
Cross Roller, Plunger
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Basic Actuator Style - Limit Switch
Plunger
Mounting Hole Spacing - Limit Switch
1.00 in
Body Depth - Limit Switch
1 in
Operating Temp. Range
-25° to 160°F
Body Height - Limit Switch
1.75 in
Special Features
Zinc Die-Cast Housing, 0.5 In - 14NPT Conduit
Body Style - Limit Switch
Miniature
Standards
UL, CSA
Body Width - Limit Switch
3.04 in
Stem Thread - Limit Switch
No Stem
Boot Sealed Actuator - Limit Switch
Yes
Threaded for Panel Mounting - Limit Switch
No
Contact Form- Switches
1NC/1NO
Product Description
Engineered to withstand shock, vibration, washdowns, and outdoor environments, this enclosed limit switch features silver contacts and die-cast zinc housing.
Expertly Selected Product Pairings
Item Barcode
Enclosed Limit Switch
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 12U174 | Enclosed Limit Switch |
 | UNSPSC CODES | 39122213 | |
 | VMRS (ATA) CODES | 053-006-009 | Enclosed Limit Switch |
