DAYTON

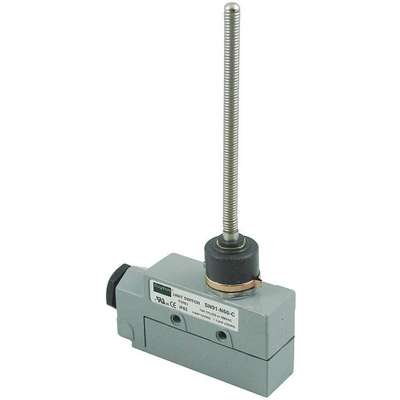

Dayton Wobble Stick General Purpose Limit Switch; Location: Top, Contact Form: 1NC/1NO, Omnidirectional Mov
Hover over image to magnify
#918298-3 | Pkg Qty: 1
$78.86 pkg | $78.86 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
AC Contact Rating
15 A @ 480 V
IP Rating
65
Actuator Length
5.12 in.
Item
General Purpose Limit Switch
Actuator Location
Top
Limit Switch Style
General Purpose Limit Switch
Actuator Style
Wobble Stick, Boot Sealed
Mfr. Part Number
12T914
Amperage
15 A
Movement
Omnidirectional
Basic Actuator Style
Wobble Stick
NEMA Rating
3, 4, 13
Body Depth
1.01 in.
Operating Force
5 oz.
Body Height
1.76 in.
Operating Temperature Range
-1 deg. F to 176 deg. F
Body Style
Miniature
Package Quantity
1
Body Width
3.39 in.
Series
Dayton
Boot Sealed Actuator
Yes
Shipping Weight
.55 lb.
Brand
DAYTON
Style
Sealed Wobble Stick Coil
Conduit Size
1/2 in. NPT
Threaded for Panel Mounting
No
Contact Form
1NC/1NO, SPDT
Travel
Maximum Pre-Travel 15, Over Travel N/A
DC Contact Rating
15 A @ 480 V
Type
General Duty, Side Mounted
Depth
1.01 in.
Voltage
480 VAC/DC
Electrical Connection
Screw Terminals
Voltage Rating
480 VAC/DC
Hazardous Location
No
Width
3.39 in.
Height
6.88 in.
Wiring Entry
1/2 in. NPT
General
AC Contact Rating - Limit Switch
15A @ 480V
Contact Form- Switches
1NC/1NO
Actuator Length - Limit Switch
5.12 in
DC Contact Rating - Limit Switch
15A @ 480V
Actuator Location - Limit Switch
Top
Mounting - Limit Switch
Surface
Actuator Style - Limit Switch
Wobble Stick
Mounting Hole - Limit Switch
(2) 0.21 in dia
Basic Actuator Style - Limit Switch
Wobble Stick
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Body Depth - Limit Switch
1.01 in
Mounting Hole Spacing - Limit Switch
1.00 in
Body Height - Limit Switch
1.76 in
Operating Temp. Range
-14° to 176°F
Body Style - Limit Switch
Miniature
Standards
UL, CSA, CE
Body Width - Limit Switch
3.39 in
Stem Thread - Limit Switch
No Stem
Boot Sealed Actuator - Limit Switch
Yes
Threaded for Panel Mounting - Limit Switch
No
Product Description
This enclosed limit switch features a wobble stick actuator, screw terminal connectors, and omnidirectional movement.
Expertly Selected Product Pairings
Compliance & Restrictions
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item Barcode
Enclosed Limit Switch
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 12T914 | Enclosed Limit Switch |
 | UNSPSC CODES | 39122213 | |
 | VMRS (ATA) CODES | 053-006-009 | Enclosed Limit Switch |
