ENERPAC

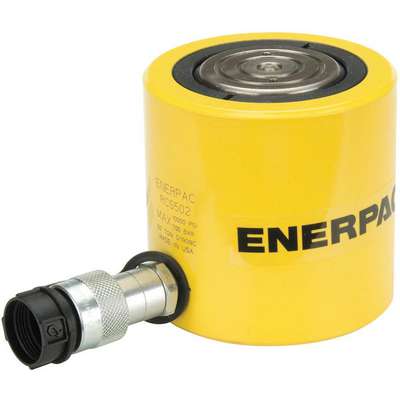

50 tons Single Acting Low Height Steel Hydraulic Cylinder, 2-3/8" Stroke Length

Hover over image to magnify
Cylinder,Steel,50 Ton,2.38 In
Cylinder,Steel,50 Ton,2.38 In

#913499-5 | Pkg Qty: 1

$1,495.95 pkg | $1,495.95 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
ENERPAC
Pack Quantity
1
Item
Hydraulic Ram
Shipping Weight
22.15 lb.
Mfr. Part Number
RCS502
General
Base Bolt Circle Dia.
1.56 in
Nominal Stroke Length
2 in
Center Hole Dia.
2 3/4 in
Oil Capacity Push
22.85 cu in
Effective Push Area
9.62 sq in
Outside Dia.
4.88 in
Extended Height
7.19 in
Plunger Dia.
2.75 in
Includes
Dust Cap, Female Coupler
Plunger Thread Size
M4
Max. Pressure
10,000 psi
Retracted Height
4.81 in
Max. Push Capacity
50 ton
Single Acting/Double Acting
Single Acting

Product Description

General purpose rams attach to a hydraulic pump to lift heavy loads with minimal effort. They have a maximum working pressure of 10,000 psi.

Standard hydraulic rams are used in general purpose applications for one-direction lifting and supporting. They are often used with fixtures to support tasks such as crimping, pressing, and punching. They can also be used standalone for lifting heavy objects.
