Best Seller

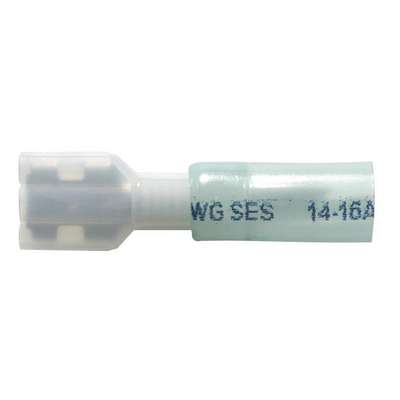

Imperial® Seal-A-Crimp® Niac Sealed Heat Shrink Female Quick Disconnect, Blue, 16-14 Awg
#80202 | Pkg Qty: 50
Technical Specifications
Brand
IMPERIAL
Item
Heat Shrink Terminal
Color Family
Blue
Pack Quantity
50
Connection Material
Copper
Tab Thickness
0.03 in.
Connection Type
Crimp
Tab Width
1/4 in.
Connector Style
Sealed
Temperature Range (Deg C)
-55 to +125 deg. C
Features
Female Quick Disconnect
Temperature Range (Deg F)
-67 to +257 deg. F
Heat Shrink Terminal Connector
Female Quick Disconnect
Trade Name
SEAL-A-CRIMP
Insulation Material
NiAc
Wire Gauge Range
16-14 AWG
Insulation Type
Heat Shrink
Product Description
Seal-A-Crimp Premium Insulated Quick Disconnect Terminal
- A Totally Environmental Sealed Terminal Connection.
- Simply Crimp And Heat. A Special Polyolefin Heat Shrink Tubing Is Utilized With An Adhesive Inner Liner That Melts And Adheres As The Tubing Shrinks, Providing A Complete Environmental Seal.
- Tubing Will Not Shrink In Length, Providing Additional Insulation And Strain Relief.
- Brazed Seam Connector Prevents Opening Of Connector Barrel When Crimped.
- Operating Temperature Range: -55 C. To 110 C.
- Style: Female
- Color: Blue
- Wire Range: 16-14
- Tab Size: Width: .250, Thickness: .030
Documents
Item Barcode
| 349-1 | Seal-A-Crimp® Ring, Qiuck Disconnect & Butt Connector Terminals Assortment, 325 Pieces |
| 349-7 | Seal-A-Crimp Terminal Asst |
| 350-1 | Seal-A-Crimp® Ring, Spade, Snap, Quick Disconnect & Butt Connector Terminals Assortment, 345 Pieces |
| 350-7 | Seal-A-Crimp Terminals |
| 351-1 | Nycrimp® Insulated Ring, Spade, Snap, Quick Disconnect, Butt, Hook & Multi-Stud Terminals Assortment, 525 Pieces |
| Name | Item | Description | |
|---|---|---|---|
|
Phillips | 1-1971 | SEAL-A-CRIMPFEM QK DISC |
|
AUVECO | 13672 | SEAL-A-CRIMP FEM QK DISC |
|
UNSPSC CODES | 39121432 | |
|
VMRS (ATA) CODES | 053-007-002 | SEAL-A-CRIMP FEM QK DISC |
