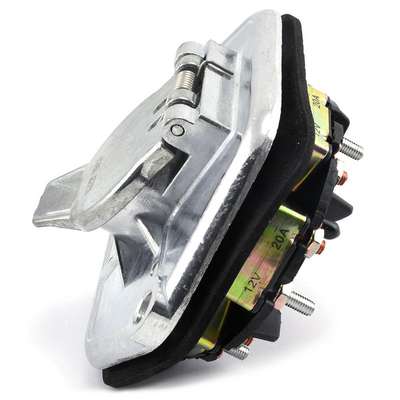

Imperial 7-Way Socket W/ 20Amp Circuit Breaker

Hover over image to magnify
Imp 7WAY Socket W/ Crct Brk

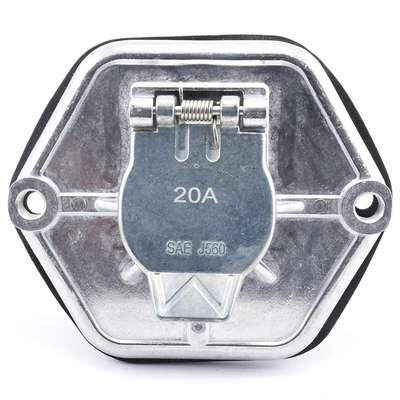

77306_2

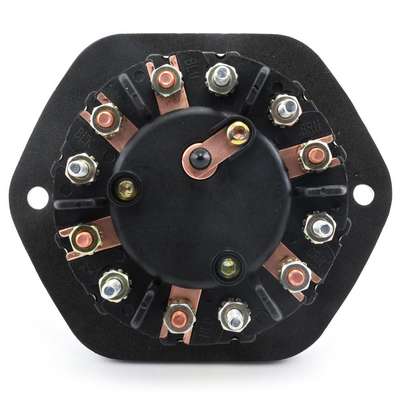

77306_3

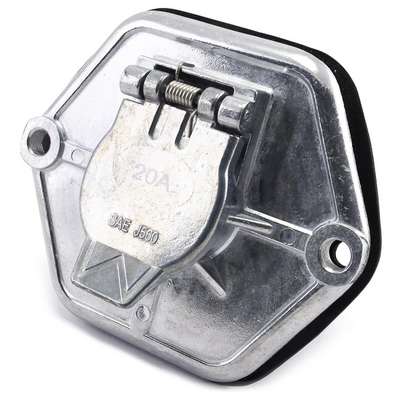

77306_4

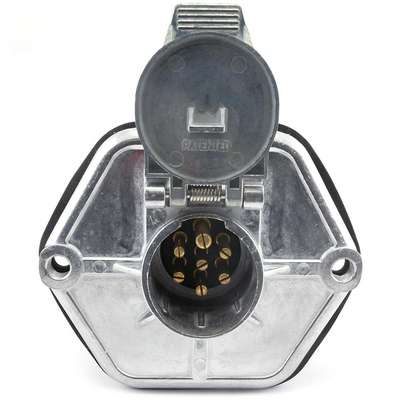

77306_5

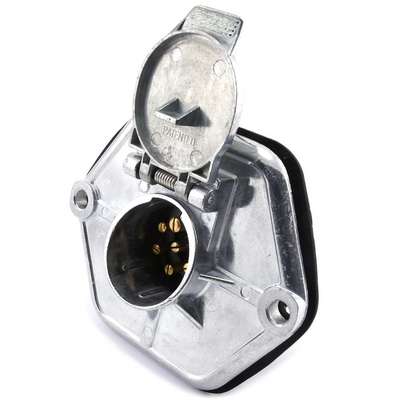

77306_6
Imp 7WAY Socket W/ Crct Brk
77306_2
77306_3
77306_4
77306_5
77306_6

#77306 | Pkg Qty: 1

$33.84 pkg | $33.84 ea

In Stock

Shipping to 60045

Technical Specifications

Brand
IMPERIAL
Package Quantity
1
Circuit Breaker
Yes
Pin Material
Split
Circuit Breaker Amp Rating
20 AMP
Shipping Weight
1.01 lb.
Hinge Pin Material
Brass
Socket Wire Configuration
6/16-10 AWG, 1/8 AWG
Housing Material
Zinc Die Cast
Terminal Connection
Ring Terminal
Item
7-Way ABS Socket
Voltage Rating
6-28 VDC
Meets Standards
SAE J560

Product Description

  • Wire identification on back of socket for ease of installation
  • Zinc die cast housing and lid for corrosion resistance and durability
  • Replaceable Type I circuit breakers for circuit protection and ease of field maintenance
  • Stainless steel pin and hinge spring for corrosion resistance and longevity
  • Solid brass pins for corrosion resistance and superior AMP capacity with nominal voltage drop

Compliance & Restrictions

Lot Tracked Item
Lot Tracked Item Details
Item Barcode
0773060
Imp 7WAY Socket W/ Crct Brk
 NameItemDescription
PollackPollack11-737
PhillipsPhillips15-762
GROTE VENDOR ITEMS ONLYGROTE VENDOR ITEMS ONLY82-0855
UNSPSC CODESUNSPSC CODES25181708
VMRS (ATA) CODESVMRS (ATA) CODES034-003-032
