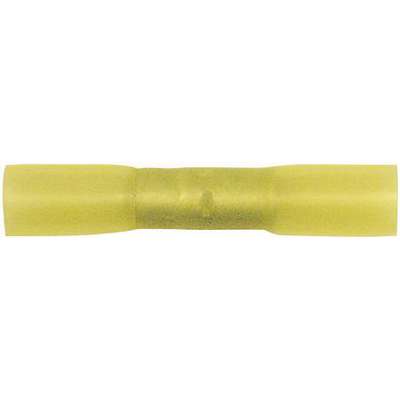

Imperial® Seal-A-Crimp® Polyethylene Sealed Heat Shrink Butt Connector, Yellow, 12-10 AWG

Zoom Icon
Secondary Item Image
Secondary Product Video

#71894-4 | Pkg Qty: 500

Package Quantity
Item Number 71894-4
Scanner Description 12-10 Seal Yellow Butt 500PCS
Inventory Status In Stock
Weight 2.7 lb
Brand IMPERIAL
Trade Name SEAL-A-CRIMP
Catalog E2

Technical Specifications

Brand
IMPERIAL
Item
Heat Shrink Terminal
Color Family
Yellow
Pack Quantity
500
Connection Material
Copper
Temperature Range (Deg C)
-55 to +125 deg. C
Connection Type
Crimp
Temperature Range (Deg F)
-67 to +257 deg. F
Connector Style
Sealed
Trade Name
SEAL-A-CRIMP
Heat Shrink Terminal Connector
Butt Connector
Voltage
600 V
Insulation Material
Polyethylene
Wire Gauge Range
12-10 AWG
Insulation Type
Heat Shrink

Product Description

Seal-A-Crimp Butt Connector

  • A Totally Environmental Sealed Terminal Connection.
  • Simply Crimp And Heat. A Special Heat Shrink Tubing Is Utilized With An Adhesive Inner Liner That Melts And Adheres As The Tubing Shrinks, Providing A Complete Environmental Seal.
  • This Dual-Wall, Heat Seal Terminal Is Specifically Suited For Those Applications Which Require "Environment Proof" Connections.
  • The Construction Of This Unique Terminal Begins With A Funnel Entry Terminal Made Of Pure Electrolytic (Ept) Copper And Is Plated To Resist Corrosion.
  • Operating Temperature Range: -55 C. To 125 C.

Compliance & Restrictions

Lot Tracked Item Lot tracked item

Documents

Item Barcode
0718944
  Name Item Description
UNSPSC CODES UNSPSC CODES 39121432
VMRS (ATA) CODES VMRS (ATA) CODES 053-007-002 SEAL-A-CRIMP BUTT 12-10
