IMPERIAL

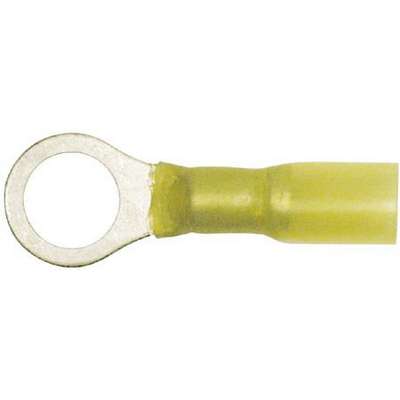

Imperial Seal-A-Crimp Sealed Heat Shrink Ring Terminal, Yellow, 12-10 AWG, Stud Size 5/16-3/8

Hover over image to magnify
Sealed Yellow 5/16-3/8
Sealed Yellow 5/16-3/8
Imperial Seal-A-Crimp Sealed Heat Shrink Ring Terminal, Yellow, 12-10 AWG, Stud Size 5/16-3/8 Video

#71161 | Pkg Qty: 50

In Stock

Shipping to 60045
Catalog: E2

Technical Specifications

Brand
IMPERIAL
Item
Heat Shrink Terminal
Color Family
Yellow
Mfr. Part Number
711610
Connection Material
Copper
Package Quantity
50
Connection Type
Crimp
Shipping Weight
0.31 lb.
Connector Style
Sealed
Temperature Range (Deg. C)
-55 to +125 deg. C
Heat Shrink Terminal Connector
Ring Terminal
Temperature Range (Deg. F)
-67 to +257 deg. F
Heat Shrink Terminal Stud Size
5/16-3/8 in.
Trade Name
SEAL-A-CRIMP
Insulation Type
Heat Shrink
Wire Gauge Range
12-10 AWG

Product Description

Seal-A-Crimp® Ring Terminal
  • A Totally Environmental Sealed Terminal Connection.
  • Simply Crimp And Heat. A Special Heat Shrink Tubing Is Utilized With An Adhesive Inner Liner That Melts And Adheres As The Tubing Shrinks, Providing A Complete Environmental Seal.
  • This Dual-Wall, Heat Seal Terminal Is Specifically Suited For Those Applications Which Require "Environment Proof" Connections.
  • The Construction Of This Unique Terminal Begins With A Funnel Entry Terminal Made Of Pure Electrolytic (Ept) Copper And Is Plated To Resist Corrosion.
  • Operating Temperature Range: -55° C. To 125° C.
  • Stud Size: 5/16-3/8
  • Wire Gauge: 12-10
  • Color: Yellow
