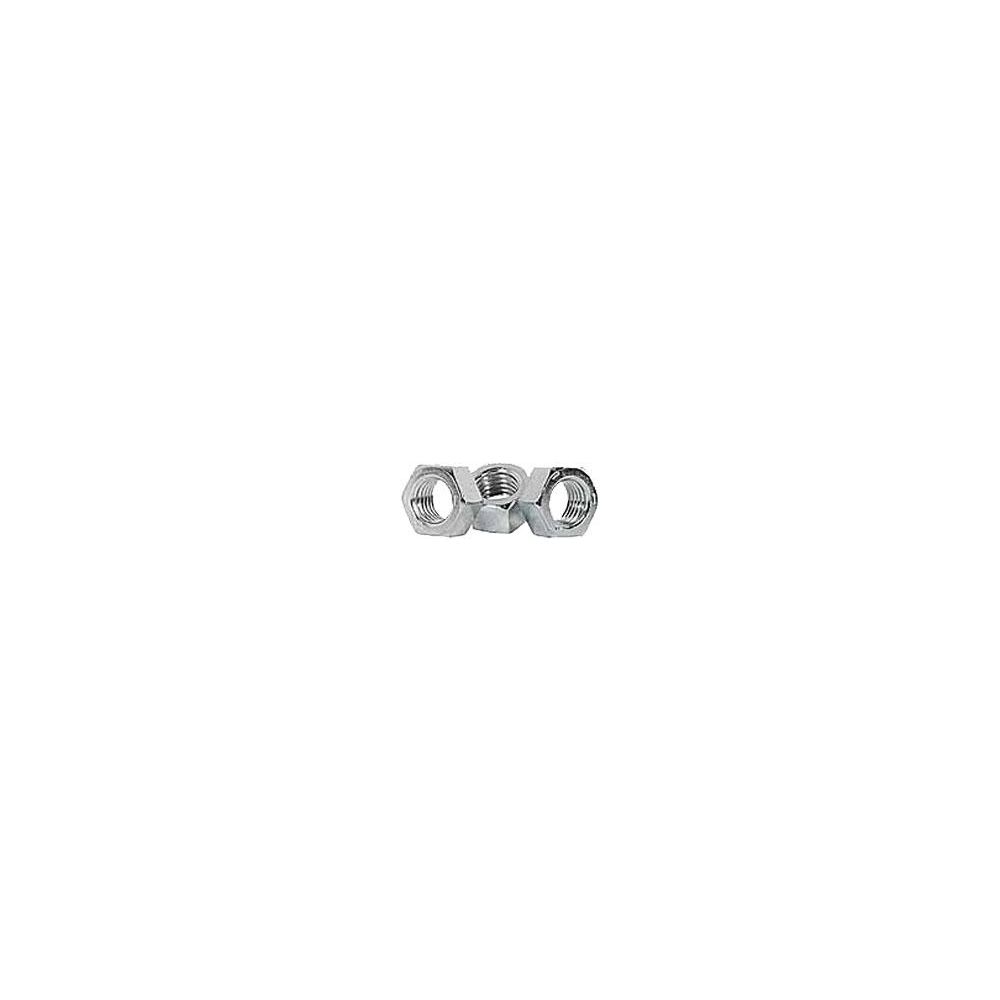

Grade 5 USS Hex Nut, 1/4"-20, Zinc Plated, Medium Carbon Steel, Right Hand, 200 PK
Hover over image to magnify
Technical Specifications
Brand
APPROVED SUPPLIER
Material
Medium Carbon Steel
Country of Origin
US (subject to change)
Nut Material Grade/Class
Grade 5
Diameter
1/4 in.
Package Quantity
200
Finish
Zinc Plated
Shipping Weight
2 lb.
Grade
5
System of Measurement
Fractional
Head Type
Hex Head
Thread Direction
Right
Hex Nut Basic Material
Steel
Thread Size
1/4"-20
Item
Hex Nut
Thread Type
Coarse/ USS/ UNC
Product Description
Grade 5 USS Finished Hex Nut
- Complies With SAE J995 Specifications Ansi/Asme B18.2.2.
- Double Chamfered.
- Zinc; Clear Chromate Finish; Astm B633 Type III Sc1
- Rockwell Hardness: C32 (Maximum)
- Decarburization: SAE J121
- Discontinuities: SAE J122A
- Threads: Class 2Ba To Ansi/Asme B1.1
- Size: 1/4-20
- Domestic Nut Grade 5
Compliance & Restrictions
Lot Tracked Item Details
Item Barcode
Dom Nut GR5 1/4-20 USS
| Name | Item | Description | |
|---|---|---|---|
 | UNSPSC CODES | 31161727 | DOMESTIC NUT 1/4-20 GR5 |
 | VMRS (ATA) CODES | 053-007-004 | DOMESTIC NUT 1/4-20 GR5 |
