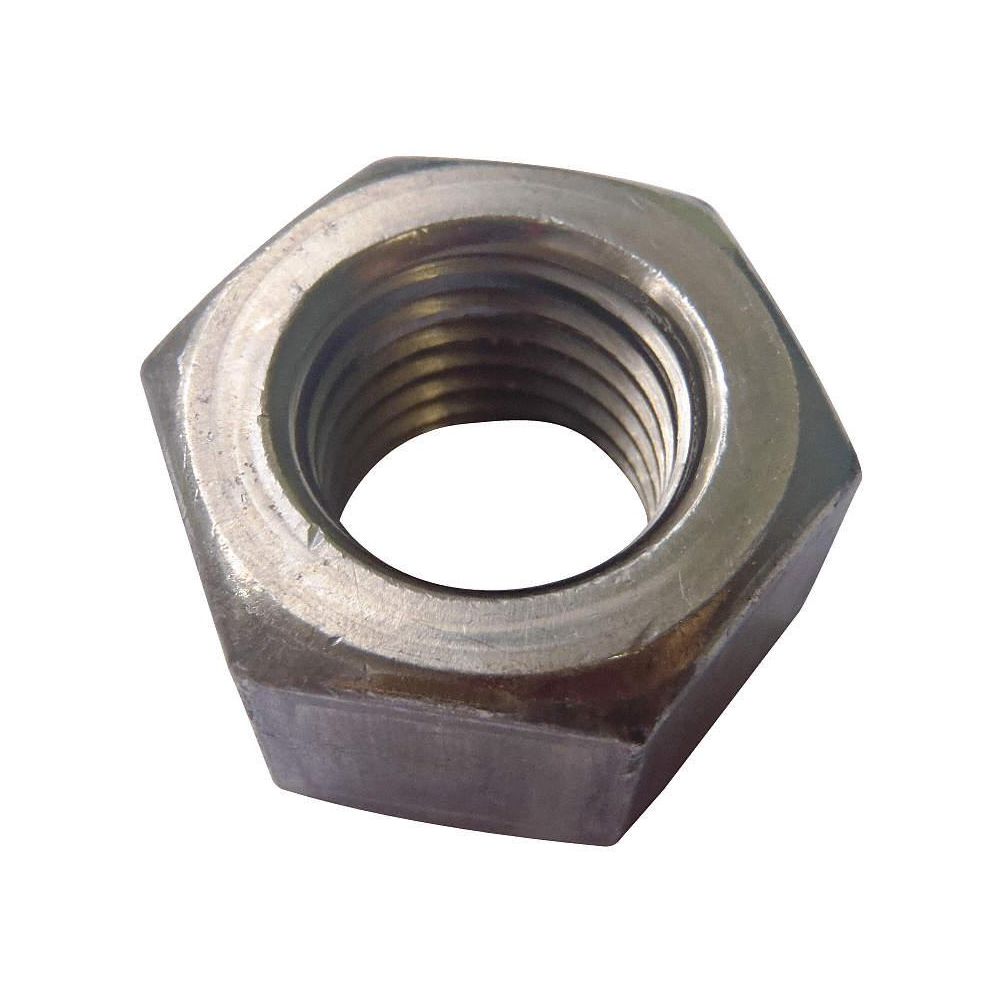

Grade 5 USS Hex Nut, 7/8"-9, Zinc Plated, Medium Carbon Steel, Right Hand, 25 PK
Hover over image to magnify
Technical Specifications
Across The Flats
1-5/16 in.
Nut Material Grade/Class
Grade 5
Brand
APPROVED SUPPLIER
Package Quantity
25
Country of Origin
Varies (subject to change)
Rockwell Hardness
C32
Diameter
7/8 in.
Shipping Weight
5.5 lb.
Finish
Zinc Plated
System of Measurement
Fractional
Grade
5
Thickness
3/4 in.
Head Type
Hex Head
Thread Direction
Right
Hex Nut Basic Material
Steel
Thread Size
7/8"-9
Item
Hex Nut
Thread Type
Coarse/ USS/ UNC
Material
Medium Carbon Steel
Product Description
Grade 5 USS Finished Hex Nut
- Complies With SAE J995 Specifications Ansi/Asme B18.2.2.
- Double Chamfered Or Has A Washer Faced Bearing Surface And Chamfered Top.
- Zinc; Clear Chromate Finish; Astm B633 Type III Sc1
- Rockwell Hardness: C32 (Maximum)
- Decarburization: SAE J121
- Discontinuities: SAE J122A
- Threads: Class 2Ba To Ansi/Asme B1.1
- UNC Proof Load: 1/4"-1" Nominal Diameter 120,000 Psi; Over 1" Nominal Diameter 105,000 Psi
- Size: 7/8-9
- Width Across Flats: 1-5/16
- Thickness: 3/4
Expertly Selected Product Pairings
Compliance & Restrictions
Lot Tracked Item Details
Item Barcode
Nut 7/8-9 USS GR 5
| Name | Item | Description | |
|---|---|---|---|
 | UNSPSC CODES | 31161727 | FN HEX 5 PL 7/8-9 |
 | VMRS (ATA) CODES | 053-007-004 | HEX NUT LOK BLT 5/16x2.5 |
