Best Seller

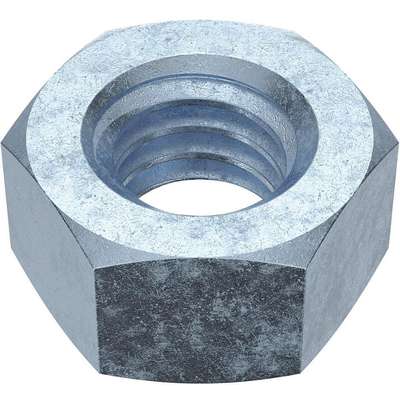

Grade 5 USS Hex Nut, 5/16"-18, Zinc Plated, Medium Carbon Steel, Right Hand, 200 PK

Hover over image to magnify
Nut 5/16-18 USS GR 5
PI_Asset_1122954
Nut 5/16-18 USS GR 5
PI_Asset_1122954
Grade 5 USS Hex Nut, 5/16"-18, Zinc Plated, Medium Carbon Steel, Right Hand, 200 PK Video

#40132 | Pkg Qty: 200

Package Quantity
200

Loading Stock Status...

Item Number 40132
Scanner Description Nut 5/16-18 USS GR 5
Inventory Status In Stock
Weight 2.06 lb
Brand APPROVED SUPPLIER
Catalog A11

Available Assortments View All

Technical Specifications

Across The Flats
1/2 in.
Material Grade/Class
Grade 5
Brand
APPROVED SUPPLIER
Pack Quantity
200
Diameter
5/16 in.
Rockwell Hardness
C32
Finish
Zinc Plated
System of Measurement
Fractional
Grade
5
Thickness
0.2656 in.
Head Type
Hex Head
Thread Direction
Right
Hex Nut Basic Material
Steel
Thread Size
5/16"-18
Item
Hex Nut
Thread Type
Coarse/ USS/ UNC
Material
Medium Carbon Steel

Product Description

Grade 5 USS Finished Hex Nut
  • Complies With SAE J995 Specifications Ansi/Asme B18.2.2.
  • Double Chamfered.
  • Zinc; Clear Chromate Finish; Astm B633 Type III Sc1
  • Rockwell Hardness: C32 (Maximum)
  • Decarburization: SAE J121
  • Discontinuities: SAE J122A
  • Threads: Class 2Ba To Ansi/Asme B1.1
  • UNC Proof Load: 1/4"-1" Nominal Diameter 120,000 Psi; Over 1" Nominal Diameter 105,000 Psi
  • Size: 5/16-18
  • Width Across Flats: 1/2
  • Thickness: 17/64

Compliance & Restrictions

Lot Tracked Item Lot tracked item
Item Barcode
0401320
  Name Item Description
Your number AUVECO 15587 FN HEX 5 PL 5/16-18
Your number AUVECO 3543 FN HEX 5 PL 5/16-18
UNSPSC CODES UNSPSC CODES 31161727 FN HEX 5 PL 5/16-18
VMRS (ATA) CODES VMRS (ATA) CODES 053-007-004 FN HEX 5 PL 5/16-18
