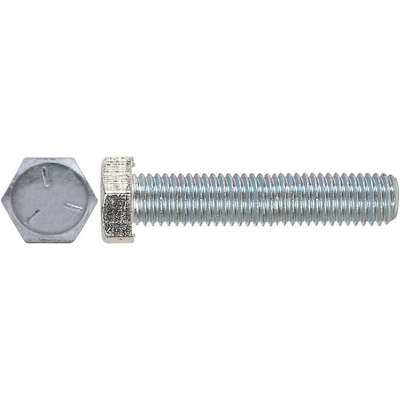

Grade 5 USS Hex Head Cap Screw, 3/4"-10 x 1-1/4", Clear, Steel, 20 PK

Zoom Icon
Secondary Item Image
0201060_1
Secondary Product Video
Secondary Product Video

#20260 | Pkg Qty: 20

Item Number 20260
Scanner Description 3/4 X 1 1/4 USS GR 5
Inventory Status In Stock
Weight 5.38 lb
Brand APPROVED SUPPLIER
Catalog A10

Technical Specifications

Basic Material
Steel
Item
Cap Screw
Brand
APPROVED SUPPLIER
Length Under Head
1-1/4 in.
Dia./Thread Size
3/4"-10
Material
Steel
Fastener Diameter
3/4 in.
Meets Standards
SAE Grade 5 physical and mechanical specifications
Fastener Head Height
0.4688 in.
Pack Quantity
20
Fastener Material Grade
Grade 5
Rockwell Hardness
C25-C34
Fastener Tensile Strength
120000 psi
System of Measurement
Fractional
Fastener Thread Style
Fully Threaded
Thread Direction
Right
Finish
Clear Zinc
Thread Length
1-3/4 in.
Head Type
Hex Head
Thread Type
Coarse/ USS/ UNC
Head Width
1-1/8 in.

Product Description

Thread Pitch: 3/4-10 UNC

  • Grade 5 USS Hex Head Cap Screw.
  • Conforms To SAE Grade 5 Physical And Mechanical Specifications.
  • Zinc Plated For Corrosion Resistance. Technical Data Material And Mechanical Properties Of SAE J429 Dimensions: Ansi/Asme B18.2.1 Hex Head Cap Screws Tensile: 1/4" - 1" Nominal Diameter 120,000 PSI (Minimum) Over 1" Nominal Diameter 105,000 PSI (Minimum) Proof Load: 1/4" - 1" Nominal Diameter 85,000 Psi; Over 1" Nominal Diameter 74,000 PSI Threads: Radius Root Class 2A To Ansi/Asme B1.1 Hardness: 1/4" - 1" Nominal Diameter Rockwell C25-C34; Over 1" Nominal Diameter C19-C30 Decarburation: SAE J121 Discontinuities: SAE J1061 Guide For Thread Length On Partially Threaded Bolts. For Bolts Under 6": Twice The Bolt Diameter Plus A 1/4". For Bolts Over 6": Twice The Bolt Diameter Plus A 1/2". This Gives You The Approximate Bolt Thread Length Available.

Compliance & Restrictions

Prop 65 WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Lot Tracked Item Lot tracked item
Item Barcode
0202600
  Name Item Description
UNSPSC CODES UNSPSC CODES 31161501 HX CP PL USS 3/4X1-1/4 5
VMRS (ATA) CODES VMRS (ATA) CODES 053-007-005 HX CP PL USS 3/4X1-1/4 5
