WINTERS

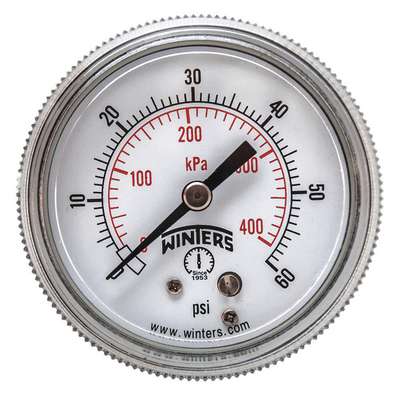

Panel-Mount Pressure Gauge: U-Clamp, 0 to 60 psi, 2 in Dial, 1/8 in NPT Male, Center Back
#945760-7Pkg Qty: 1
$10.86 pkg
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
WINTERS
Mfr. Part Number
P9U901404UC
Package Quantity
1
Shipping Weight
.37 lb.
Brand
WINTERS
Package Quantity
1
Mfr. Part Number
P9U901404UC
Shipping Weight
.37 lb.
General
Accuracy
+/-2-1-2%
Accuracy Grade
ASME B40.100 Grade A
Accuracy Scale
Mid-Scale
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F, -40 Degrees to 65 Degrees C
Application
Compressors, Panels, Water Pressure Testing, Severe Ambient Conditions
Case Construction
Welded Joint
Case Depth
1.145 in
Case Diameter
2.271 in
Case Finish
Painted
Case Material
Steel
Compatible Process Media
Non-Clogging, Non-Corroding
Dial Face Material
Aluminum
For Panel Cut-Out Size
2.11 in
Gauge Accuracy Grade
Grade A - Industrial
Gauge Application
U-Clamp
Gauge Case Material
Steel
Gauge Mounting Type
U-Clamp
Gauge Wetted Parts
Brass / Bronze
IP/NEMA Rating
IP52
Includes Mounting Hardware
Yes
Lens Material
Acrylic
Lens Material - Gauge
Plastic
Mounting Hardware Included
Yes
Mounting Type
U-Clamp
Movement Material
Brass
Nominal Dial Size
2 in
Over-Pressure Limit
25% of Full Scale
Panel-Mountable
Yes
Pointer Material
Aluminum
Pressure Gauge Type
Panel-Mount Dial Pressure Gauge
Pressure Range
0 to 60 psi
Pressure Range Type
Pressure
Primary Pressure Range
0 to 60
Primary Scale Units
psi
Process Connection
1/8 in NPT Male
Process Connection Gender
Male
Process Connection Location
Center Back
Process Connection Size
1/8 in
Process Connection Type
NPT
Process Temperature Range
-40 Degrees to 150 Degrees F
Scale Type
Dual
Secondary Pressure Range
0 to 410
Secondary Scale Units
kPa
Sensor Material
Phosphor Bronze
Sensor Type
Bourdon Tube
Series
P9U 90
Socket Material
Brass
Standards
ANSI/ASME, ASME, CRN
Type of Gauge
Panel-Mount Dial Pressure Gauge
Accuracy
+/-2-1-2%
Nominal Dial Size
2 in
Accuracy Grade
ASME B40.100 Grade A
Over-Pressure Limit
25% of Full Scale
Accuracy Scale
Mid-Scale
Panel-Mountable
Yes
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F, -40 Degrees to 65 Degrees C
Pointer Material
Aluminum
Application
Compressors, Panels, Water Pressure Testing, Severe Ambient Conditions
Pressure Gauge Type
Panel-Mount Dial Pressure Gauge
Case Construction
Welded Joint
Pressure Range
0 to 60 psi
Case Depth
1.145 in
Pressure Range Type
Pressure
Case Diameter
2.271 in
Primary Pressure Range
0 to 60
Case Finish
Painted
Primary Scale Units
psi
Case Material
Steel
Process Connection
1/8 in NPT Male
Compatible Process Media
Non-Clogging, Non-Corroding
Process Connection Gender
Male
Dial Face Material
Aluminum
Process Connection Location
Center Back
For Panel Cut-Out Size
2.11 in
Process Connection Size
1/8 in
Gauge Accuracy Grade
Grade A - Industrial
Process Connection Type
NPT
Gauge Application
U-Clamp
Process Temperature Range
-40 Degrees to 150 Degrees F
Gauge Case Material
Steel
Scale Type
Dual
Gauge Mounting Type
U-Clamp
Secondary Pressure Range
0 to 410
Gauge Wetted Parts
Brass / Bronze
Secondary Scale Units
kPa
IP/NEMA Rating
IP52
Sensor Material
Phosphor Bronze
Includes Mounting Hardware
Yes
Sensor Type
Bourdon Tube
Lens Material
Acrylic
Series
P9U 90
Lens Material - Gauge
Plastic
Socket Material
Brass
Mounting Hardware Included
Yes
Standards
ANSI/ASME, ASME, CRN
Mounting Type
U-Clamp
Type of Gauge
Panel-Mount Dial Pressure Gauge
Movement Material
Brass
Product Description
Panel-Mount Pressure Gauge, Nominal Dial Size 2 in, Accuracy +/-2-1-2 Percent, Gauge Case Material Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Acrylic, Process Connection Size 1/8 in, Field Fillable No, For Panel Cut-Out Size 2.11 in, Process Connection Location Center Back, Case Color Black, IP/NEMA Rating IP52, Primary Pressure Range 0 to 60, Dry Dampening Feature None, Vibration Resistance None, Dial Color White
