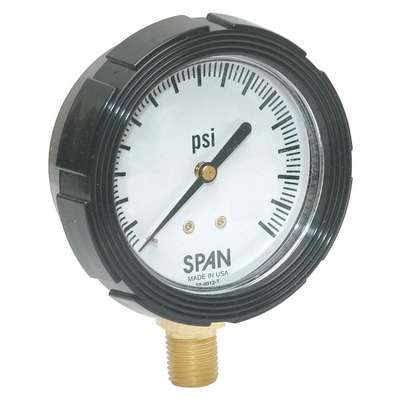

Industrial Compound Gauge: 30 to 0 to 30 in Hg/psi, 2 1/2 in Dial, Liquid-Filled, Bottom, Nylon
#942965Pkg Qty: 1
$104.85 pkg
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
SPAN
Mfr. Part Number
LFS-210-30Hg/30PSI-G-CERT
Package Quantity
1
Shipping Weight
.83 lb.
Brand
SPAN
Package Quantity
1
Mfr. Part Number
LFS-210-30Hg/30PSI-G-CERT
Shipping Weight
.83 lb.
General
Accuracy
+/-1.0%
Accuracy Grade
ASME B40.100 Grade 1A
Accuracy Scale
Full Scale
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F
Application
Transportation, Fire Monitoring, Marine, Military, Hydraulics, Waste Water or Slurry, Water Purification or Irrigation
Bezel Material
Zytel Nylon
Bezel Mounting Type
Removable
Case Color
Black
Case Construction
Corrosion Resistant
Case Depth
1.41 in
Case Diameter
2.8 in
Case Material
Nylon
Dial Color
White
Dial Face Color
White
Dial Face Material
Aluminum
Gauge Accuracy Grade
Grade 1A - Industrial
Gauge Case Liquid
Glycerin
Gauge Case Material
Zytel Nylon
Gauge Wetted Parts
Brass / Bronze
IP/NEMA Rating
IP65, NEMA 4X
Includes
Pulsation Restrictor
Includes Calibration Certificate
NIST with Data
Lens Material
Acrylic
Lens Material - Gauge
Plastic
Liquid-Filled Case
Yes
Mounting Type
Stem-Mount
Movement Material
Copper Alloy
Movement Type
Swiss
Nominal Dial Size
2 1/2 in
Pointer Color
Black
Pointer Material
Aluminum
Pressure Gauge Type
Industrial Pressure Gauge
Pressure Range
30 to 0 to 30 in Hg/psi
Pressure Range Type
Compound
Primary Pressure Range
30 to 0 to 30
Primary Scale Minor Graduations
1, 2
Primary Scale Numeric Increments
5, 10
Primary Scale Units
in Hg/psi
Process Connection
1/4 in NPT Male
Process Connection Gender
Male
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Range
30 in Hg Vac to 30 psi
Removable Bezel
Yes
Scale Type
Single
Sensor Material
Phosphor Bronze
Sensor Type
Bourdon Tube
Series
LFS-210
Socket Material
Brass
Standards
ANSI/ASME
Vibration Resistance
Liquid-Filled
Accuracy
+/-1.0%
Movement Material
Copper Alloy
Accuracy Grade
ASME B40.100 Grade 1A
Movement Type
Swiss
Accuracy Scale
Full Scale
Nominal Dial Size
2 1/2 in
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F
Pointer Color
Black
Application
Transportation, Fire Monitoring, Marine, Military, Hydraulics, Waste Water or Slurry, Water Purification or Irrigation
Pointer Material
Aluminum
Bezel Material
Zytel Nylon
Pressure Gauge Type
Industrial Pressure Gauge
Bezel Mounting Type
Removable
Pressure Range
30 to 0 to 30 in Hg/psi
Case Color
Black
Pressure Range Type
Compound
Case Construction
Corrosion Resistant
Primary Pressure Range
30 to 0 to 30
Case Depth
1.41 in
Primary Scale Minor Graduations
1, 2
Case Diameter
2.8 in
Primary Scale Numeric Increments
5, 10
Case Material
Nylon
Primary Scale Units
in Hg/psi
Dial Color
White
Process Connection
1/4 in NPT Male
Dial Face Color
White
Process Connection Gender
Male
Dial Face Material
Aluminum
Process Connection Location
Bottom
Gauge Accuracy Grade
Grade 1A - Industrial
Process Connection Size
1/4 in
Gauge Case Liquid
Glycerin
Process Connection Type
NPT
Gauge Case Material
Zytel Nylon
Range
30 in Hg Vac to 30 psi
Gauge Wetted Parts
Brass / Bronze
Removable Bezel
Yes
IP/NEMA Rating
IP65, NEMA 4X
Scale Type
Single
Includes
Pulsation Restrictor
Sensor Material
Phosphor Bronze
Includes Calibration Certificate
NIST with Data
Sensor Type
Bourdon Tube
Lens Material
Acrylic
Series
LFS-210
Lens Material - Gauge
Plastic
Socket Material
Brass
Liquid-Filled Case
Yes
Standards
ANSI/ASME
Mounting Type
Stem-Mount
Vibration Resistance
Liquid-Filled
Product Description
Industrial Compound Gauge, Nominal Dial Size 2 1/2 in, Accuracy +/-1.0 Percent, Gauge Case Material Zytel Nylon, Process Connection Type NPT, Process Connection Gender Male, Lens Material Acrylic, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Black, IP/NEMA Rating IP65, NEMA 4X, Primary Pressure Range 30 to 0 to 30, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White, Pressure Gauge Type Industrial Pressure Gauge
