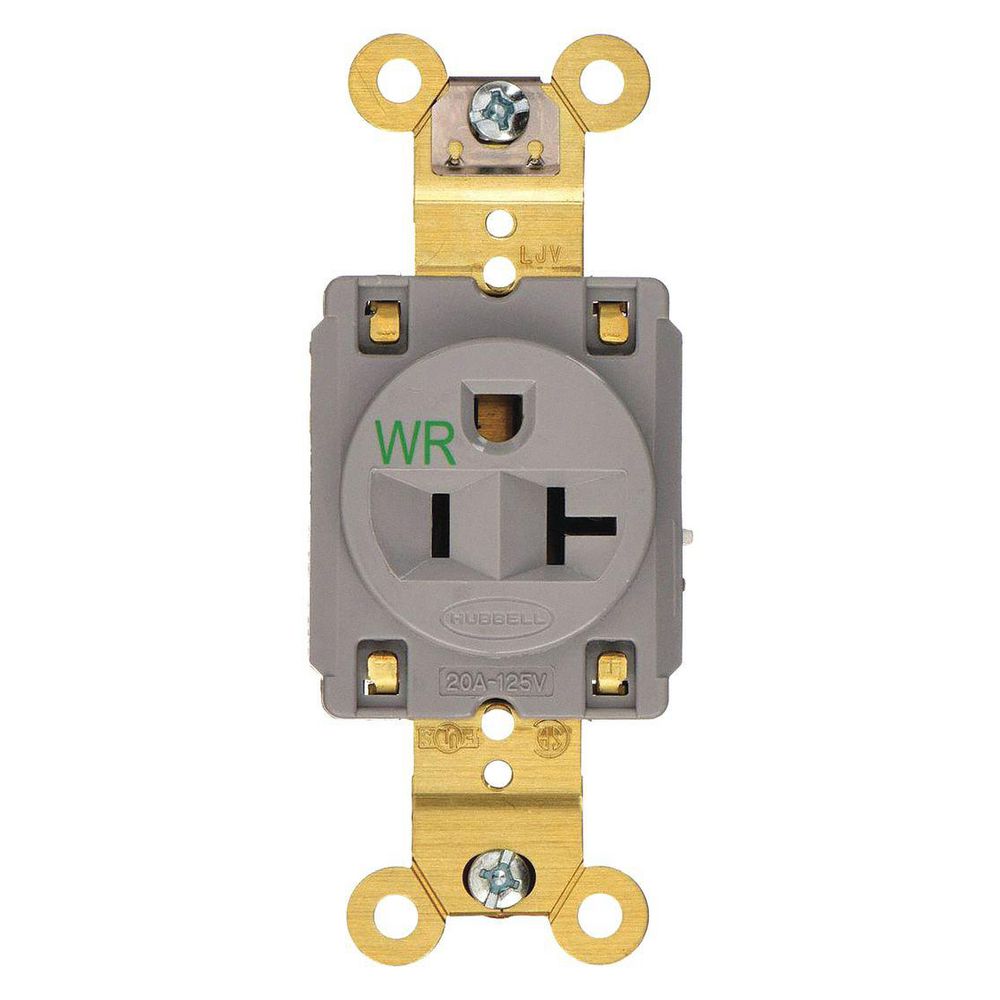

HUBBELLHubbell Receptacle: Single, 5-20R, 125V Ac, 20 A, 2 Poles, Gray, Screw Terminals, Std Protection
Hover over image to magnify
#942486-4 | Pkg Qty: 1
$43.05 pkg | $43.05 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Application Environment
Harsh and Heavy Use Industrial
Number of Poles
2
Brand
HUBBELL
Number of Wires
3
Color Family
Gray
Outlet Type
Single
Corrosion Resistant
No
Package Quantity
1
Duty
Extra Heavy
Phase
Single
Horsepower
1 HP
Power Indicator
No
Item
Receptacle
Shipping Weight
.21 lb.
Material
Nylon/Reinforced PET
Subcategory
Single Receptacles
Material of Construction
Nylon/Reinforced PET
Surge Suppression
No
Mfr. Part Number
HBL5361GRYWR
Tamper Resistant
No
Mounting Type
Flush
Type
Single
NEMA Configuration
5-20R
Voltage
125VAC
NEMA Receptacle Configuration
5-20R
Weather Resistant
Yes
Number of Gangs
1
Wiring Method
Back, Side
General
Additional Electrical Protections
Standard Protection
Maximum Operating Temperature
167 Degrees F
Connection Orientation
Straight
Maximum Wire Size
10 AWG
Contact Material
Nickel-Plated Brass
Minimum Operating Temperature
-40 Degrees F
Cover Type
No Cover
Minimum Wire Size
12 AWG
Current Rating
20 A
Mount Hole Center-to-Center Height
3.3 in
Face Plate Height
1.9 in
Mount Type
Flush
Face Plate Width
1.6 in
NEMA Enclosure Rating
1
Flange Type
Non-Flanged
Number of Poles & Wires
2 Pole / 3 Wire
Grade
Federal Specification
Overall Depth
1.2 in
Grounding
Grounded
Polarized
Yes
Horsepower Rating
1 hp
Receptacle Type
Single
Housing Color
Gray
Resistance Properties
Weather Resistant
Housing Material
Nylon (Face)
Standards
CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-600, NEMA WD-6, UL 498 File E2186
Includes
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
UL 94 Flammability Rating
V-2
Includes Mounting Hardware
Yes
Voltage Rating
125V AC
Key Resistance Properties
Weather Resistant - Weather Resistant - 20 A
Wire Connection Type
Screw Terminals
Market
Industrial
Product Description
Straight-Blade 2-Pole, 3-Wire Receptacles HBL® Extra Heavy-Duty Industrial Series
- Superior impact resistance Circuit identification Reduced heat buildup Low resistance to ground path
Item Barcode
Receptacle,Single,20A,5-20R,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 2HEE3 | |
 | UNSPSC CODES | 39121406 | |
 | VMRS (ATA) CODES | 053-006-009 |
