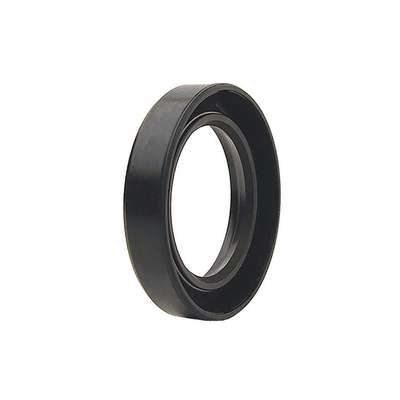

Rotary Shaft Seal: 2 Lip w/Spring, TC, Nitrile, 45 mm ID, 65 mm OD, 8 mm Wd, 7 psi Max Pressure
#941469-9Pkg Qty: 1
$13.35 pkg
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
DDS
Item
Rotary Shaft Seal
Maximum Pressure
7 psi
Mfr. Part Number
456508TC
Outside Diameter
65 mm
Package Quantity
1
Shipping Weight
.06 lb.
Width
8 mm
Brand
DDS
Outside Diameter
65 mm
Item
Rotary Shaft Seal
Package Quantity
1
Maximum Pressure
7 psi
Shipping Weight
.06 lb.
Mfr. Part Number
456508TC
Width
8 mm
General
Contact Type
Contact Seal
Design Code
TC
For Fluid Type
Alcohol, Automatic Transmission Fluid, Cutting Oil, E.P. Lubricants, Engine Oil, Gasoline, Gear Oil, Grease, Hydrochloric Acid Solution, Light Oil/Kerosene, Machine Oil No.2, Petroleum Base Lubricating Oil, Sulfuric Acid Solution, Turbine Oil No.2, Water-Glycol
Hardness
45 HRC @ 4 m/s and 55 HRC @ 10 m/s
Inside Diameter
45 mm
Lip Material
Nitrile Rubber
Lip Material Application
Nitrile Rubber for General Applications
Maximum Surface Speed
999 mps
Maximum Temperature
250 deg. F
Minimum Temperature
-40 Degrees F
Number of Lips
2
Overall Width
8 mm
Seal Design
TC
Seal Type
Lip Seal
Spring Reinforcement
Yes
Spring Type
Garter
Standards
DIN 3760
System of Measurement
Metric
Contact Type
Contact Seal
Minimum Temperature
-40 Degrees F
Design Code
TC
Number of Lips
2
For Fluid Type
Alcohol, Automatic Transmission Fluid, Cutting Oil, E.P. Lubricants, Engine Oil, Gasoline, Gear Oil, Grease, Hydrochloric Acid Solution, Light Oil/Kerosene, Machine Oil No.2, Petroleum Base Lubricating Oil, Sulfuric Acid Solution, Turbine Oil No.2, Water-Glycol
Overall Width
8 mm
Hardness
45 HRC @ 4 m/s and 55 HRC @ 10 m/s
Seal Design
TC
Inside Diameter
45 mm
Seal Type
Lip Seal
Lip Material
Nitrile Rubber
Spring Reinforcement
Yes
Lip Material Application
Nitrile Rubber for General Applications
Spring Type
Garter
Maximum Surface Speed
999 mps
Standards
DIN 3760
Maximum Temperature
250 deg. F
System of Measurement
Metric
Product Description
Rotary Shaft Seal, Design Code TC, Inside Diameter 45 mm, Outside Diameter 65 mm, Overall Width 8 mm, Contact Type Contact Seal, Lip Material Nitrile Rubber, Maximum Pressure 7 psi, Number of Lips 2, System of Measurement Metric, Case Coating None
