MILLER ELECTRIC

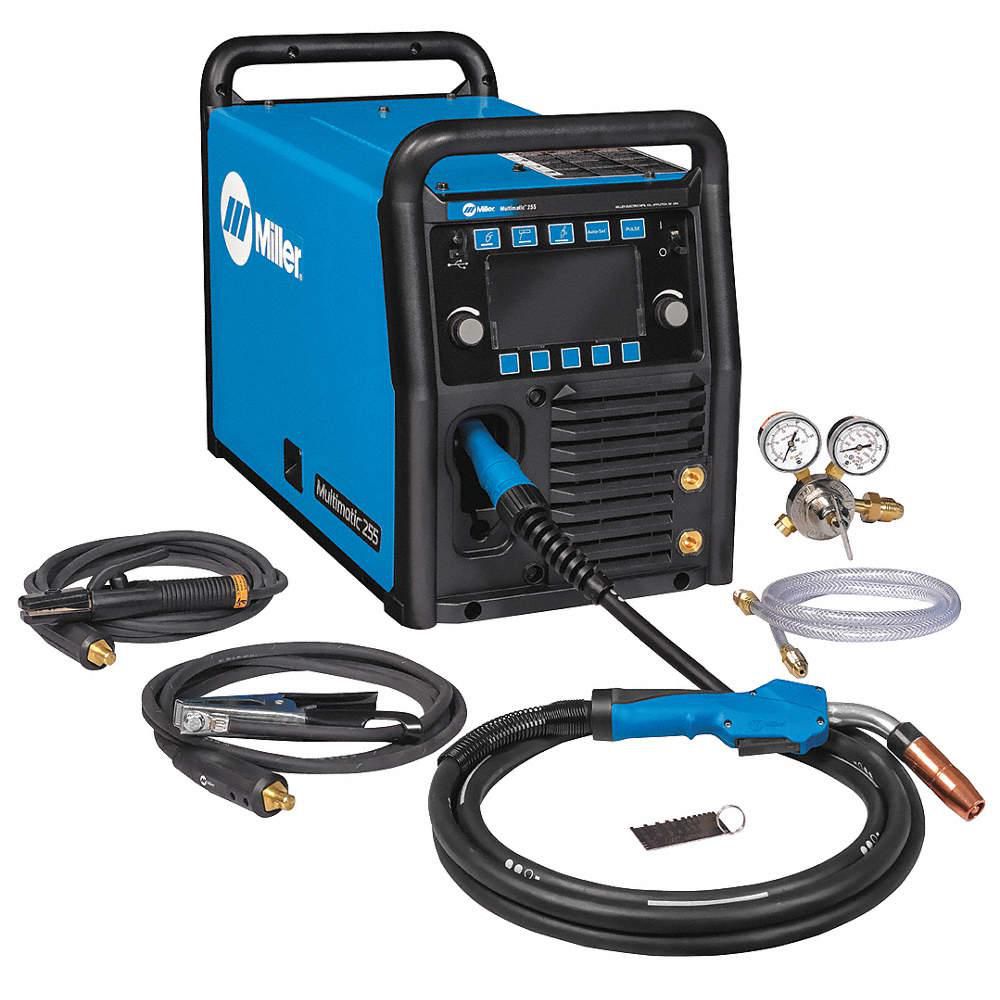

Miller Electric Multiprocess Welder: Multimatic 255, DC, MIG/Stick Pack
#940814Pkg Qty: 1
$6,029.36 pkg
This item requires special shipping, additional charges may apply.
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
MILLER ELECTRIC
Duty Cycle
0.6
Function
DC Stick, Flux-Cored, MIG, Pulsed MIG
Hz
50/60
Input
34.7/29.7/17.1/14.3
Input Voltage
208 VAC, 220/230/240 VAC, 460/480 VAC, 575 VAC
Item
Multiprocess Welder
Mfr. Part Number
907728
Overall Depth
26-1/4 in.
Overall Height
19.24 in.
Overall Width
13-3/4 in.
Package Quantity
1
Phase
Single-Phase
Rated Output
230 A @ 25.5V @ 60%
Series
Multimatic 255
Shipping Weight
109 lb.
Welding Processes
Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Wire Size
0.023 in. to 0.045 in.
Brand
MILLER ELECTRIC
Overall Height
19.24 in.
Duty Cycle
0.6
Overall Width
13-3/4 in.
Function
DC Stick, Flux-Cored, MIG, Pulsed MIG
Package Quantity
1
Hz
50/60
Phase
Single-Phase
Input
34.7/29.7/17.1/14.3
Rated Output
230 A @ 25.5V @ 60%
Input Voltage
208 VAC, 220/230/240 VAC, 460/480 VAC, 575 VAC
Series
Multimatic 255
Item
Multiprocess Welder
Shipping Weight
109 lb.
Mfr. Part Number
907728
Welding Processes
Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Overall Depth
26-1/4 in.
Wire Size
0.023 in. to 0.045 in.
General
Amperage Range
5 A to 350 A
Application
Contract Welding Services, General Fabricators, Plant Maintenance Shops
Enhanced Process
Pulsed MIG (GMAW-P), Pulsed TIG (GTAW-P)
Features
Easy to Understand Interface, Optional EZ-Latch(TM) Running Gear, Portability, Program Mode, Versatility
For Material Type
Aluminum, Stainless Steel, Steel
For Maximum Material Thickness
1/2 in (Steel)
For Maximum Material Thickness - Steel
1/2 in
For Minimum Material Thickness
24 ga (Steel)
For Wire Type
Aluminum, Flux-Cored, Solid
Includes
0.035/0.045 in Reversible Drive Rolls, 10 ft Work Cable & Clamp with 50 mm Dinse-Style Connector, 15 ft 250 A MDX-250 MIG Gun with AccuLock S Consumables for 0.035/0.045 in Wire, Contact Tips, Electrode Holder with 10 ft Cable & 50 mm Dinse-Style Connector, Flow Gauge Regulator & Gas Hose for Argon or Argon/Carbon Dioxide Mix
Input Voltage (Nominal)
575V, 460V, 240V, 208V
Kit Includes
Work Cable with Clamp, MIG Gun, Flow Gauge/Regulator & Gas Hose, Stick Electrode Holder with Cable, Drive Rolls, Contact Tips
MIG Welding Maximum Output Current
350 A
MIG Welding Minimum Output Current
20 A
MIG Welding Output @ Duty Cycle
230 A @ 25.5 V, 60%
Max. Amperage Range (MIG)
Greater than 300 A
Max. Amperage Range (Stick)
150 A - 300 A
Max. Amperage Range (TIG)
150 A - 300 A
Max. Input Current
34.7 A @ 208V AC (Single-Phase)
Max. Wire Diameter
0.045 in (Solid), 0.045 in (Flux-Cored), 0.045 in (Aluminum)
Maximum Wire Diameter
0.045 in
Maximum Wire Feed Speed
800 in/min
Minimum Wire Diameter
0.035 (Solid), 0.035 in (Flux-Cored)
Minimum Wire Feed Speed
50 in/min
OCV
81
Output Range
5 to 350 ADC
Plug Type
Bare Leads
Polarity
DC
Power Cord Included
Yes
Power Cord Length
10 ft
Process
Flux-Cored Welding (FCAW), Stick Welding (SMAW), TIG Welding (GTAW)
Rated Output @ Duty Cycle (Stick)
200 A @ 60%
Remote Connection Type
14-Pin (Miller)
Standards
CSA
Stick Welding Maximum Output Current
275 A
Stick Welding Minimum Output Current
30 A
Stick Welding Output @ Duty Cycle
200 A @ 28 V, 60%
TIG Arc Start Feature
Lift Arc Start
TIG Welding Maximum Output Current
275 A
TIG Welding Minimum Output Current
5 A
TIG Welding Output @ Duty Cycle
275 A @ 21 V, 60%
Weight
84 lb
Welder Kit Type
MIG/Stick Package
Welder Series - Model
Multimatic 255 - 907728
Welding Mode
CC/CV
brand-mfr model
MILLER ELECTRIC - 907728
Amperage Range
5 A to 350 A
Minimum Wire Feed Speed
50 in/min
Application
Contract Welding Services, General Fabricators, Plant Maintenance Shops
OCV
81
Enhanced Process
Pulsed MIG (GMAW-P), Pulsed TIG (GTAW-P)
Output Range
5 to 350 ADC
Features
Easy to Understand Interface, Optional EZ-Latch(TM) Running Gear, Portability, Program Mode, Versatility
Plug Type
Bare Leads
For Material Type
Aluminum, Stainless Steel, Steel
Polarity
DC
For Maximum Material Thickness
1/2 in (Steel)
Power Cord Included
Yes
For Maximum Material Thickness - Steel
1/2 in
Power Cord Length
10 ft
For Minimum Material Thickness
24 ga (Steel)
Process
Flux-Cored Welding (FCAW), Stick Welding (SMAW), TIG Welding (GTAW)
For Wire Type
Aluminum, Flux-Cored, Solid
Rated Output @ Duty Cycle (Stick)
200 A @ 60%
Includes
0.035/0.045 in Reversible Drive Rolls, 10 ft Work Cable & Clamp with 50 mm Dinse-Style Connector, 15 ft 250 A MDX-250 MIG Gun with AccuLock S Consumables for 0.035/0.045 in Wire, Contact Tips, Electrode Holder with 10 ft Cable & 50 mm Dinse-Style Connector, Flow Gauge Regulator & Gas Hose for Argon or Argon/Carbon Dioxide Mix
Remote Connection Type
14-Pin (Miller)
Input Voltage (Nominal)
575V, 460V, 240V, 208V
Standards
CSA
Kit Includes
Work Cable with Clamp, MIG Gun, Flow Gauge/Regulator & Gas Hose, Stick Electrode Holder with Cable, Drive Rolls, Contact Tips
Stick Welding Maximum Output Current
275 A
MIG Welding Maximum Output Current
350 A
Stick Welding Minimum Output Current
30 A
MIG Welding Minimum Output Current
20 A
Stick Welding Output @ Duty Cycle
200 A @ 28 V, 60%
MIG Welding Output @ Duty Cycle
230 A @ 25.5 V, 60%
TIG Arc Start Feature
Lift Arc Start
Max. Amperage Range (MIG)
Greater than 300 A
TIG Welding Maximum Output Current
275 A
Max. Amperage Range (Stick)
150 A - 300 A
TIG Welding Minimum Output Current
5 A
Max. Amperage Range (TIG)
150 A - 300 A
TIG Welding Output @ Duty Cycle
275 A @ 21 V, 60%
Max. Input Current
34.7 A @ 208V AC (Single-Phase)
Weight
84 lb
Max. Wire Diameter
0.045 in (Solid), 0.045 in (Flux-Cored), 0.045 in (Aluminum)
Welder Kit Type
MIG/Stick Package
Maximum Wire Diameter
0.045 in
Welder Series - Model
Multimatic 255 - 907728
Maximum Wire Feed Speed
800 in/min
Welding Mode
CC/CV
Minimum Wire Diameter
0.035 (Solid), 0.035 in (Flux-Cored)
brand-mfr model
MILLER ELECTRIC - 907728
Product Description
Multiprocess Welder, Series Multimatic 255, Input Voltage 208V AC, 220/230/240V AC, 460/480V AC, 575V AC, Phase Single-Phase, Welding Mode CC/CV, Polarity DC, Input Frequency 50/60 Hz, Welding Processes Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW), Stick Welding Maximum Output Current 275 A, TIG Welding Maximum Output Current 275 A, MIG Welding Maximum Output Current 350 A, For Wire Type Aluminum, Flux-Cored, Solid, Maximum Wire Diameter 0.045 in
