CAROL

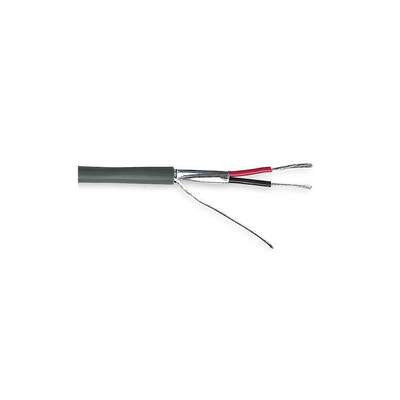

Power Limited Cable: Shielded, 3 (0 Pr) Conductors - Data Cable, Stranded, Gray, Commercial
#940693-9Pkg Qty: 1
$945.58 pkg
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
CAROL
Item
Power Limited Cable
Length
1000 ft.
Mfr. Part Number
C0455A.41.10
Package Quantity
1
Shipping Weight
37.2 lb.
Voltage
300
Brand
CAROL
Package Quantity
1
Item
Power Limited Cable
Shipping Weight
37.2 lb.
Length
1000 ft.
Voltage
300
Mfr. Part Number
C0455A.41.10
General
Application
Alarm Systems, Computer Systems, Communications, Control Systems, Audio Systems
Conductor Gauge
18 AWG
Features
UL Rated for Cable Tray Use
Fire Rating
Commercial
Gauge
18 AWG
Jacket Material
PVC
Maximum Operating Temperature
221 Degrees F
Minimum Operating Temperature
-4 Degrees F
NEC Article and Type
725 PLTC
Number of Conductors
3
Number of Strands
16
Outside Diameter
0.2 in
Package Type
Reel in a Box
Pairing
Unpaired
Power Limited
Power Limited
Shielded
Shielded
Shielding Material
100% Aluminum/Polyester Flexfoil
Solid/Stranded
Stranded
Standards
CE 2006/95/EC, UL 70,000 BTU Vertical Tray Flame Test, NEC Article 725, NEC/CEC Type CMG, RoHS Compliant
Application
Alarm Systems, Computer Systems, Communications, Control Systems, Audio Systems
Number of Strands
16
Conductor Gauge
18 AWG
Outside Diameter
0.2 in
Features
UL Rated for Cable Tray Use
Package Type
Reel in a Box
Fire Rating
Commercial
Pairing
Unpaired
Gauge
18 AWG
Power Limited
Power Limited
Jacket Material
PVC
Shielded
Shielded
Maximum Operating Temperature
221 Degrees F
Shielding Material
100% Aluminum/Polyester Flexfoil
Minimum Operating Temperature
-4 Degrees F
Solid/Stranded
Stranded
NEC Article and Type
725 PLTC
Standards
CE 2006/95/EC, UL 70,000 BTU Vertical Tray Flame Test, NEC Article 725, NEC/CEC Type CMG, RoHS Compliant
Number of Conductors
3
Product Description
Electronic Power-Limited Tray Cable (PLTC)
- UL 70,000 Btu Vertical Tray Flame Test Temp. range: -4° to 221°F Resists sunlight Stranded conductors Gray PVC jacket Rated for 300V Shielded cable has aluminum/polyester Flexfoil® shield with a 25% overlap and outward-facing foil. Premium-grade PVC insulation is color-coded. Suitable for burglar alarms, intercom systems, cash registers, and equipment control circuits.
Item Barcode
Data Cable,3 Wire,Gray,1000ft
