AIR HANDLER

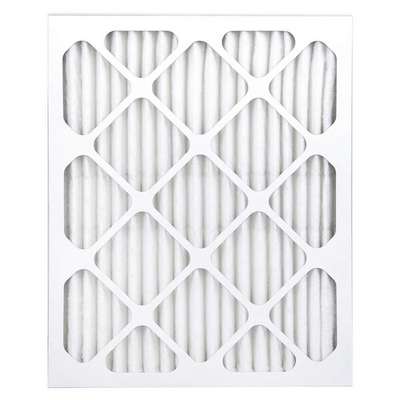

Air Handler Pleated Air Filter: 16x20x2, MERV 13, High Capacity, Synthetic, Beverage Board
#940431-3Pkg Qty: 12
$221.52 pkg | $18.46 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Actual Depth
1-3/4 in.
Actual Height
15-1/2 in.
Actual Width
19-1/2 in.
Agency Compliance
UL 900 Classified
Brand
AIR HANDLER
Capacity
High Capacity
Filter Efficiency
85%
Frame Color
White
Frame Material
Beverage Board
Item
Pleated Air Filter
MERV
13
Maximum Temperature
180 deg. F
Media Area
9.7 sq. ft.
Media Type
Synthetic
Mfr. Part Number
60RD87
Nominal Depth
2 in.
Nominal Height
16 in.
Nominal Width
20 in.
Package Quantity
12
Shipping Weight
11.64 lb.
Actual Depth
1-3/4 in.
MERV
13
Actual Height
15-1/2 in.
Maximum Temperature
180 deg. F
Actual Width
19-1/2 in.
Media Area
9.7 sq. ft.
Agency Compliance
UL 900 Classified
Media Type
Synthetic
Brand
AIR HANDLER
Mfr. Part Number
60RD87
Capacity
High Capacity
Nominal Depth
2 in.
Filter Efficiency
85%
Nominal Height
16 in.
Frame Color
White
Nominal Width
20 in.
Frame Material
Beverage Board
Package Quantity
12
Item
Pleated Air Filter
Shipping Weight
11.64 lb.
General
Actual Filter Size
15 1/2 in x 19 1/2 in x 1 3/4 in
Air Flow @ 300 FPM
667 cfm
Air Flow @ 500 FPM
1,111 cfm
Common Applications
LEED/Green
Filter Efficiency - Air Filters
85 %
Filters Out
Cooking Oil, Copier Toner, Droplet Nuclei (Sneeze), Insecticide Dust, MERV 13-16 All Bacteria, Most Face Powder, Most Smoke, Paint Pigments
Final Recommended Resistance
1.0 in WC
Frame Included
Yes
Initial Resistance @ 300 fpm
0.22 in WC
Initial Resistance @ 500 fpm
0.37 in WC
Maximum Velocity
500 fpm
Nominal Filter Size
16x20x2
Performance Rating
MERV 13
Pleats per Linear Foot
15
Removes Particles Down To
1.0 to 3.0 microns
Actual Filter Size
15 1/2 in x 19 1/2 in x 1 3/4 in
Initial Resistance @ 300 fpm
0.22 in WC
Air Flow @ 300 FPM
667 cfm
Initial Resistance @ 500 fpm
0.37 in WC
Air Flow @ 500 FPM
1,111 cfm
Maximum Velocity
500 fpm
Common Applications
LEED/Green
Nominal Filter Size
16x20x2
Filter Efficiency - Air Filters
85 %
Performance Rating
MERV 13
Filters Out
Cooking Oil, Copier Toner, Droplet Nuclei (Sneeze), Insecticide Dust, MERV 13-16 All Bacteria, Most Face Powder, Most Smoke, Paint Pigments
Pleats per Linear Foot
15
Final Recommended Resistance
1.0 in WC
Removes Particles Down To
1.0 to 3.0 microns
Frame Included
Yes
Product Description
Pleated Air Filter, Style - Air Filters Panel, Performance Rating MERV 13, Nominal Filter Size 16x20x2, Filter Efficiency - Air Filters 85 Percent, Air Filter Capacity High Capacity, Media Material Synthetic, Frame or Header Material Beverage Board, Common Applications LEED/Green, Media Color White, Media Area 9.7 sq ft, Pleats per Linear Foot 15, Filters Out Cooking Oil, Copier Toner, Droplet Nuclei (Sneeze), Insecticide Dust, MERV 13-16 All Bacteria, Most Face Power, Most Smoke, Paint Pigments
Compliance & Restrictions
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item Barcode
Pleated Air Filter,Panel,
