PATTERSON

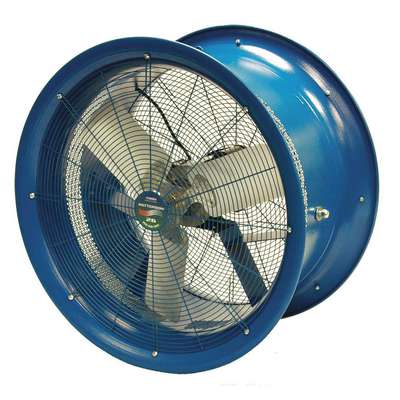

Patterson High-Velocity Industrial Fan: High-Velocity Industrial Fan, 14 in Blade Dia, 2,600 cfm

Hover over image to magnify
Hgh Vlcty Indstrl Fan,14" Blde
Hgh Vlcty Indstrl Fan,14" Blde
Double tap image to magnify

#940092-7Pkg Qty: 1

|
Alternate products displayed may not be identical in style or function to original selection.
No alternate products are currently available
See more options:

Technical Specifications

Key Specifications
Air Flow
2,600 cfm
Motor Type
Permanent Split Capacitor
Amps
2.8/1.45-1.4
Mounting Location
Ceiling
Brand
PATTERSON
Number of Blades
3
Depth
16 in.
Package Quantity
1
Height
20 in.
Phase
1
Housing Material
Polypropylene
Shipping Weight
.39 lb.
Hz
60 Hz
Voltage
115/208-230 VAC
Item
High-Velocity Industrial Fan
Watts
185
Mfr. Part Number
7J711
Width
20 in.
General
Air Velocity @ 20 Ft.
400 fpm
Fan Mounting Location
Ceiling
Air Velocity @ 40 Ft.
225 fpm
Max. Ambient Temp.
105 Degrees F
Air Velocity @ 60 Ft.
175 fpm
Oscillation
Non-Oscillating
Air Velocity @ 80 Ft.
120 fpm
Shaft Dia.
1/2 in
Assembly Required
Yes
Wheeled Base
Stationary
Environmental Applications
Industrial
Wire Guard Finish
Blue Powder Coated
Fan Housing Material
Polypropylene

Product Description

High-Velocity Industrial Fan, Blade Dia. 14 in, Non-Oscillating, 1 Speeds, Voltage 115/208-230 V AC, 1 Phase, CFM High 2600, Air Velocity @ 20 Ft. 400 fpm, Motor HP 1/4 hp, Motor RPM 1725, Operating Amps 2.8/1.45-1.4, Fan Mounting Location Ceiling, Fan RPM 1725, Max. Ambient Temp. 105 Degrees F, Hz 60 Hz, Watts 185, Motor Type Permanent Split Capacitor, Drive Type Direct Drive, Outside Dia. 20 In., Height 20 in, Width 20 in, Max. Depth 16 In.

Item Barcode

9400927
Hgh Vlcty Indstrl Fan,14" Blde
