SIEMENS

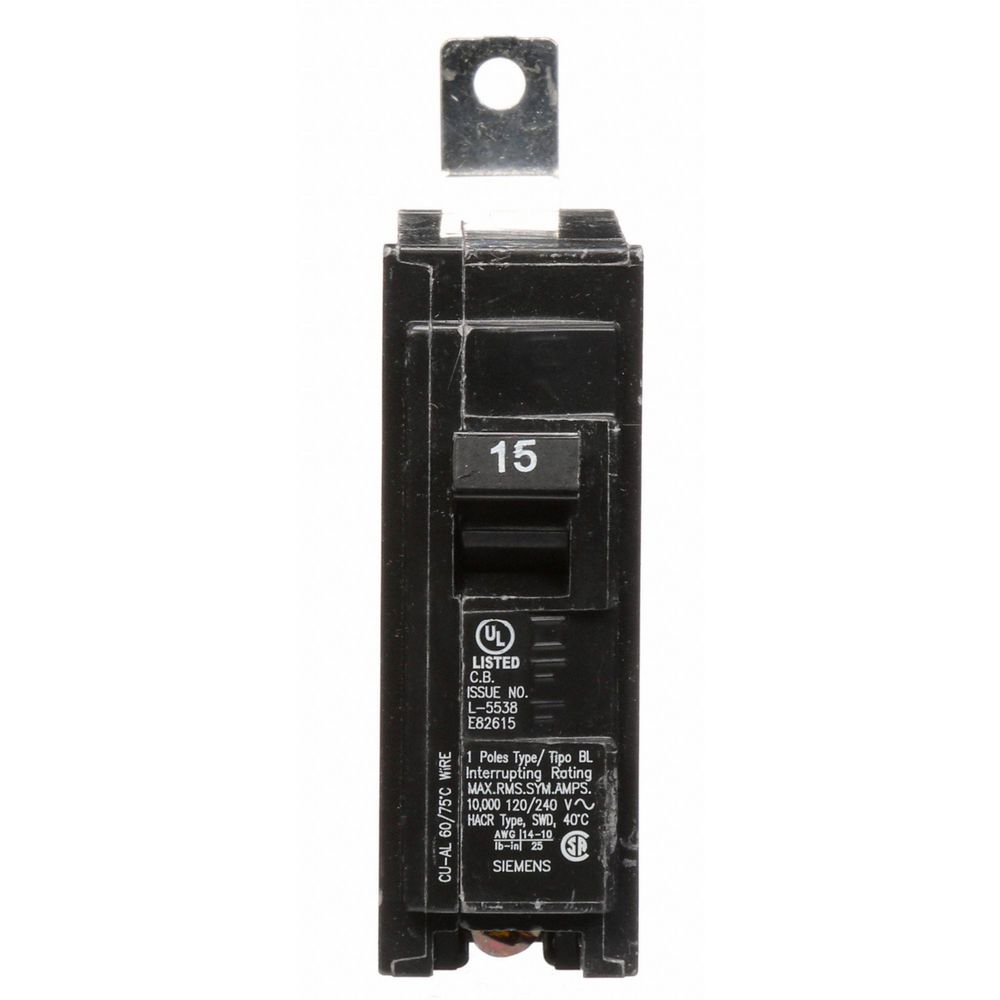

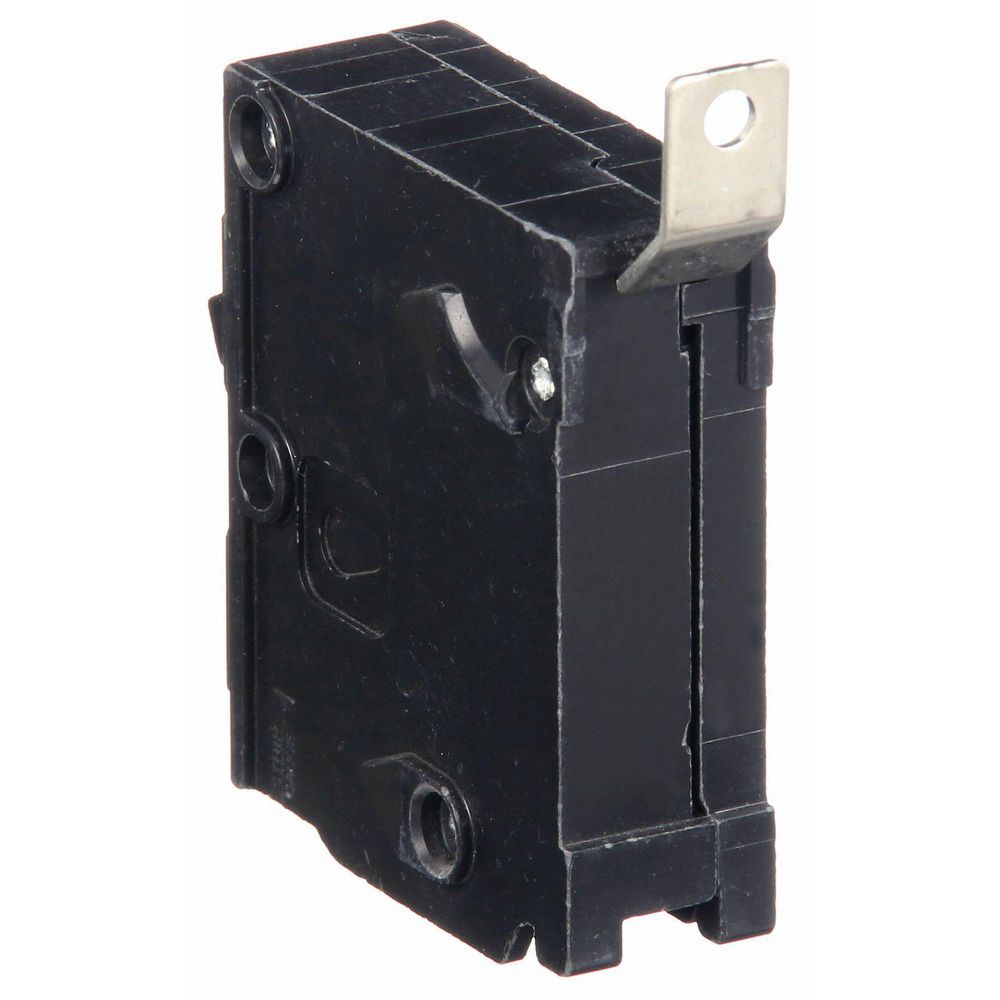

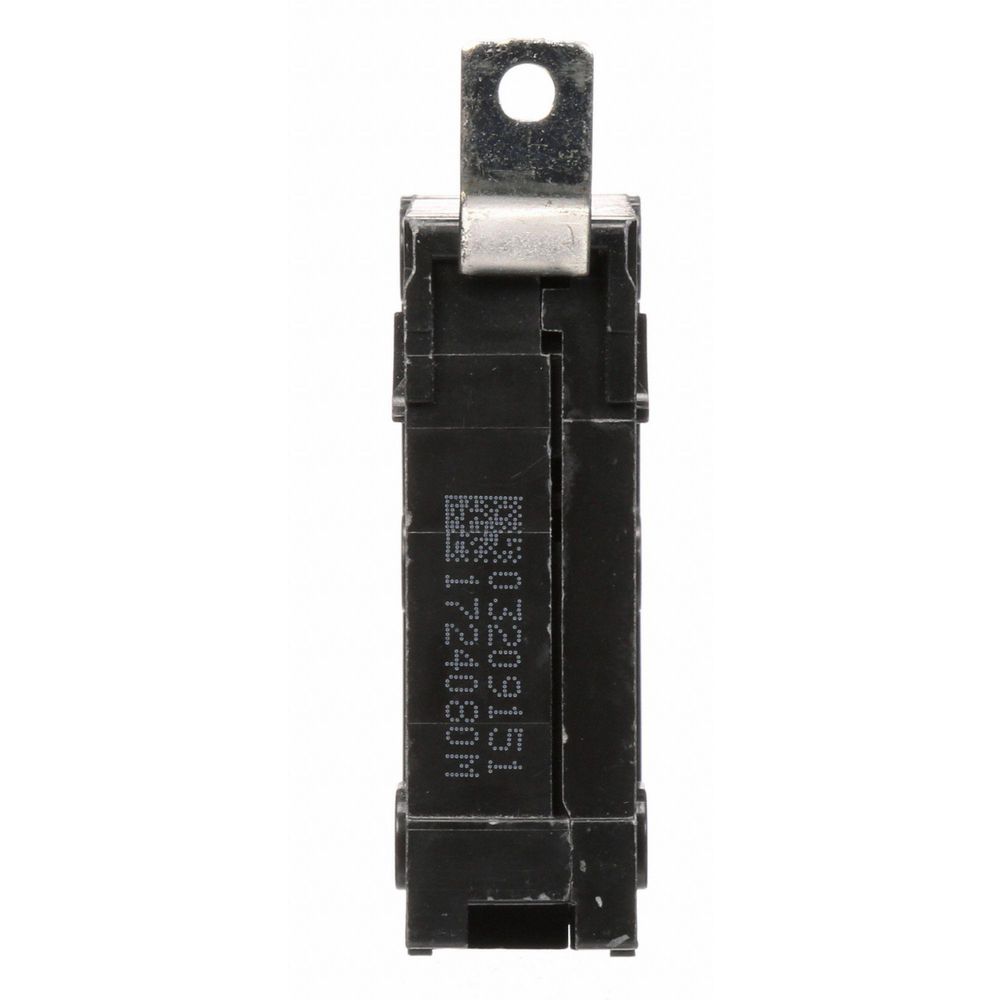

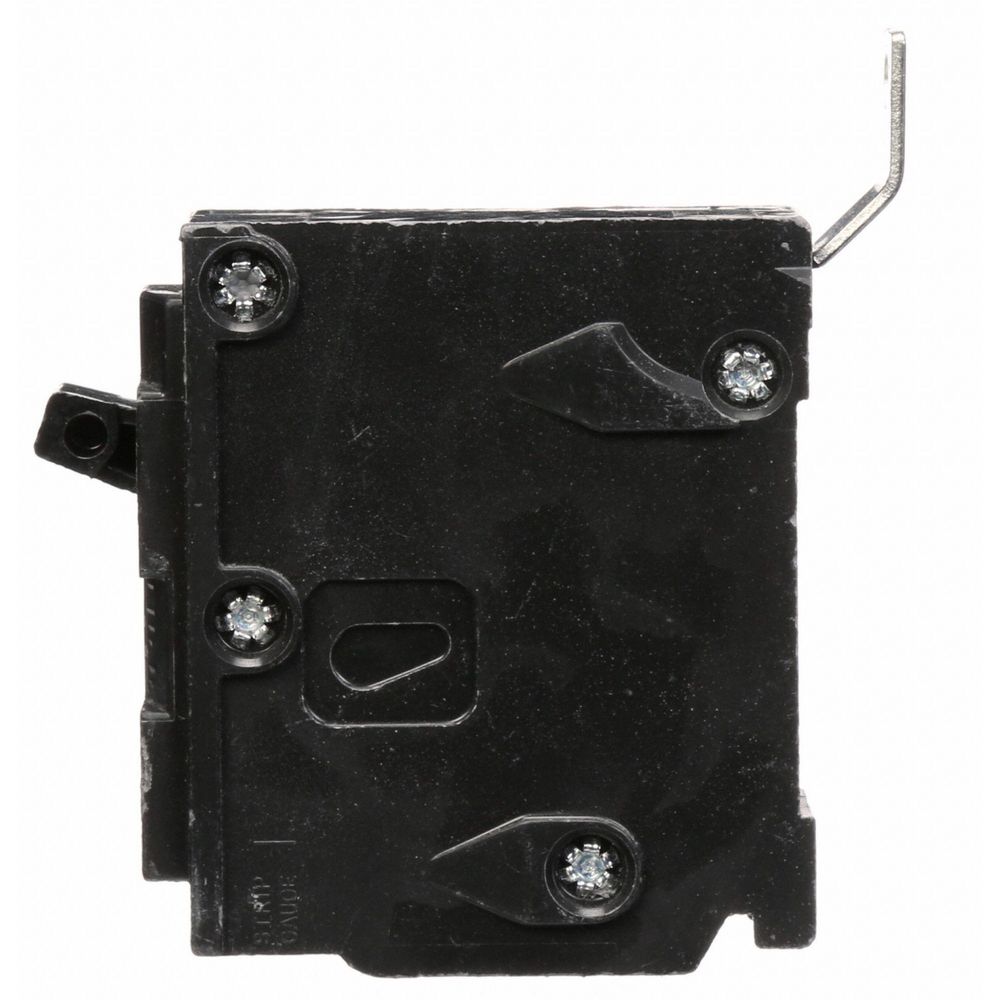

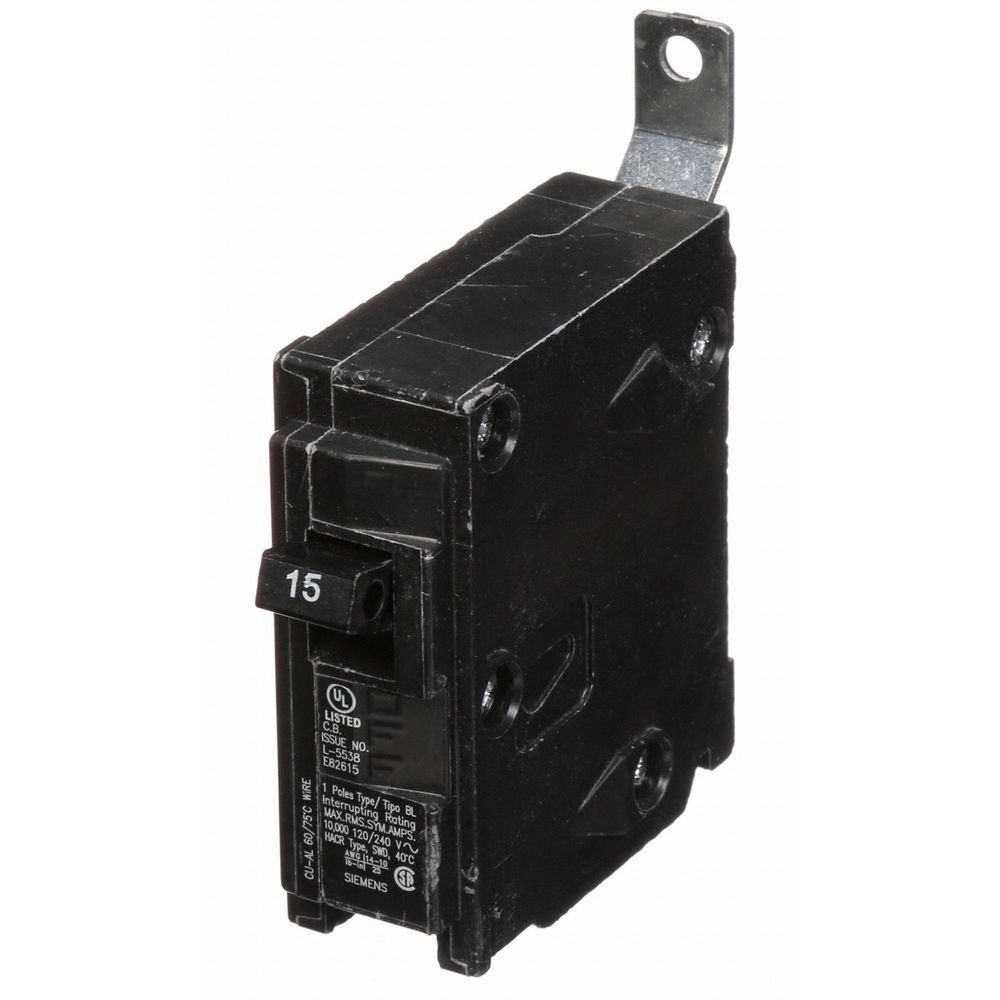

Miniature Circuit Breaker: 15 A Amps, 120/240V AC, Single Phase, 10kA at 120/240V AC, Std
Hover over image to magnify
#940069-7 | Pkg Qty: 1
$85.84 pkg | $85.84 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
AC Voltage Rating
120/240VAC
Length
3.57 in.
Air @ 120 VAC
10kA
Maximum Air Rating
10kA at 120/240VAC
Air @ 240 VAC
10kA
Maximum Wire Size
10 AWG
Air @ 48 VDC
Not Rated
Mfr. Part Number
B115
Amperage
15 A
Minimum Wire Size
12 AWG (Al), 14 AWG (Cu)
Amps
15 A
Number of Poles
1
Brand
SIEMENS
Package Quantity
1
Circuit Breaker Type
Standard
Panelboard Mounting
Bolt-On
DC Voltage Rating
Not Rated
Phase
Single
Depth
3 in.
Phase Connection
Any
For Use With
Siemens P1 Panelboards
Series
BL
Frame Size
125A/BL
Shipping Weight
.3 lb.
High Amp Trip Setting
15
Terminal Connection
Lug
Instantaneous Trip
Fixed
Voltage
120VAC
Item
Miniature Circuit Breaker
Width
1 in.
General
AIR @ 120VAC
10kA
Circuit Breaker Mounting Style
Bolt On
AIR @ 240VAC
10kA
Compatible Panelboard/Load Center Series
P1
Circuit Breaker Actuator
Toggle
Product Description
These B series miniature circuit breakers are bolted into place in panelboards, so they're more stable than plug-in breakers. They interrupt currents when low-level faults are detected in the circuit. They have a lug orientation to allow for straight-in wiring through bus bars, which eliminates the need to pigtail wires and helps organize the panelboard.
