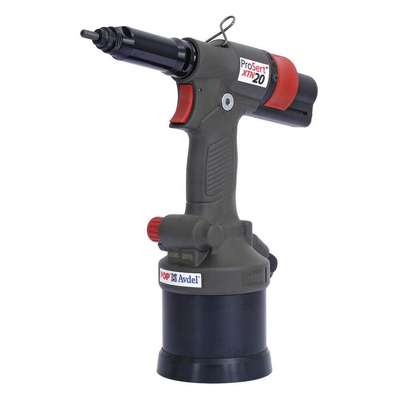

Pop Avdel Rivet Tool: 1 in Stroke L, 3,200 lbf Pulling Force

Hover over image to magnify
Rivet Tool,90 PSI,3200 Lb.
Rivet Tool,90 PSI,3200 Lb.

#939186-3 | Pkg Qty: 1

$2,960.33 pkg | $2,960.33 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Air Consumption
0.12 cfm
Mfr. Part Number
74202-00003
Air Inlet
1/4 in. NPT
Mfr. Warranty Length
1 Year Limited
Brand
POP AVDEL
Overall Height
10-3/4 in.
CFM per Stroke
0.12
Overall Length
10 in.
Construction
Aluminum
Overall Width
3-3/4 in.
Duty
Industrial
Package Quantity
1
Duty Rating
Industrial Duty
Power Source
Air Powered
Exhaust Location
Bottom
Pulling Force
3,200 lb.f
For Rivet Nut Thread Size
M10, M3, M4, M5, M6, M8
Rivet Type
Rivet Nut
Height
10-45/64 in.
Shipping Weight
6.65 lb.
Housing Material
Aluminum
Stroke Length
1 in.
Item
Rivet Tool
Tool Weight
4.9 lb.
Length
10 in.
General
Air Pressure
90 psi
Min. Air Pressure
90 psi
Includes
Nosepieces and Sets M4, M5, M6 and M8 in Stainless Steel, Steel and Aluminum
Min. Hose Size
1/4 in
Includes Mandrel Collection
No
Nose Dia.
1 in
Max. Air Pressure
90 psi
Nose Length
3 in

Product Description

Air-powered rivet nut installation tools install threaded rivet nuts (sometimes called rivnuts or nutserts) into metal when a threaded hole is needed and the metal workpiece is too thin for a thread. The threaded nut is inserted into a pre-drilled hole and the riveting tool compresses the back side of the rivet nut to secure it in place. When finished, the insert sits flush with the top-facing surface of the workpiece.
