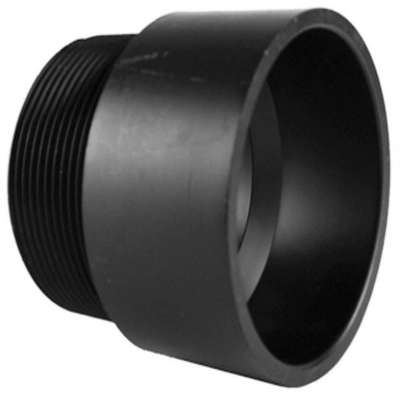

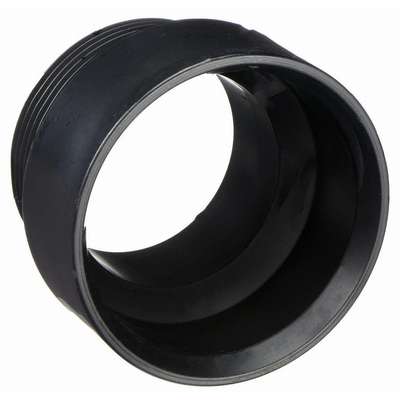

Male Adapter: 3 in x 3 in Pipe Size, Schedule 40, Male NPT x Female Socket, Black
#939129-1Pkg Qty: 1
$6.63 pkg
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Application
DWV
Brand
APPROVED SUPPLIER
Color Family
Black
Connection Type
Socket, Threaded
Fitting Connection (A) Gender
Male
Fitting Connection (A) Outside Diameter
3-1/2 in.
Fitting Connection (A) Pipe Size
3 in.
Fitting Connection (A) Type
NPT
Fitting Connection (B) Gender
Female
Fitting Connection (B) Outside Diameter
3-15/16 in.
Fitting Connection (B) Pipe Size
3 in.
Fitting Connection (B) Type
Socket
Fitting Connection Type
Hub x MNPT
Fitting Pipe Size
3 in. x 3 in.
Fitting Shape
Adapter
Item
Adapter
Mfr. Part Number
1WJD4
Package Quantity
1
Pipe Fitting Material
ABS
Shipping Weight
.4 lb.
Standards
ASTM D2661, ASTM D3311, ASTM D3965, NSF 14
Temperature Range
-20 Degrees to 140 Degrees F
Application
DWV
Fitting Connection (B) Type
Socket
Brand
APPROVED SUPPLIER
Fitting Connection Type
Hub x MNPT
Color Family
Black
Fitting Pipe Size
3 in. x 3 in.
Connection Type
Socket, Threaded
Fitting Shape
Adapter
Fitting Connection (A) Gender
Male
Item
Adapter
Fitting Connection (A) Outside Diameter
3-1/2 in.
Mfr. Part Number
1WJD4
Fitting Connection (A) Pipe Size
3 in.
Package Quantity
1
Fitting Connection (A) Type
NPT
Pipe Fitting Material
ABS
Fitting Connection (B) Gender
Female
Shipping Weight
.4 lb.
Fitting Connection (B) Outside Diameter
3-15/16 in.
Standards
ASTM D2661, ASTM D3311, ASTM D3965, NSF 14
Fitting Connection (B) Pipe Size
3 in.
Temperature Range
-20 Degrees to 140 Degrees F
General
Fitting Side A Gender
Male
Fitting Side A Nominal Pipe Size
3 in
Fitting Side A Outside Diameter
3 1/2 in
Fitting Side A Pipe Threading
8
Fitting Side A Type
NPT
Fitting Side B Gender
Female
Fitting Side B Nominal Pipe Size
3 in
Fitting Side B Outside Diameter
3 15/16 in
Fitting Side B Type
Socket
For Pipe Outside Diameter
3-1/2 in.
For Pipe Schedule
40
Gender
Female, Male
Low Lead Compliance Level
Not Compliant
Pipe Fitting Connection Type
Male NPT x Female Socket
Pipe Fitting Gender
Male Female
Pipe Size - Pipe Fitting
3 in
Temp. Range
-20 Degrees to 140 Degrees F
Fitting Side A Gender
Male
For Pipe Outside Diameter
3-1/2 in.
Fitting Side A Nominal Pipe Size
3 in
For Pipe Schedule
40
Fitting Side A Outside Diameter
3 1/2 in
Gender
Female, Male
Fitting Side A Pipe Threading
8
Low Lead Compliance Level
Not Compliant
Fitting Side A Type
NPT
Pipe Fitting Connection Type
Male NPT x Female Socket
Fitting Side B Gender
Female
Pipe Fitting Gender
Male Female
Fitting Side B Nominal Pipe Size
3 in
Pipe Size - Pipe Fitting
3 in
Fitting Side B Outside Diameter
3 15/16 in
Temp. Range
-20 Degrees to 140 Degrees F
Fitting Side B Type
Socket
Product Description
Socket x threaded fittings connect with ABS (acrylonitrile butadiene styrene) pipe and have at least one threaded end and one socket (hub or slip) fitting end. Female threads are on the inside of a fitting. Male threads are on the outside of a fitting and screw into the female threads. Threaded connections use PTFE tape to secure seal.
ABS (acrylonitrile butadiene styrene) is an opaque thermoplastic polymer with high tensile strength and low temperature properties. The smooth interior walls of ABS pipe resist physical impact, chemical corrosion, and scaling. ABS pipe connects with pipe fittings to transport potable water, slurries, and chemicals in light commercial applications.
