OMRON STI

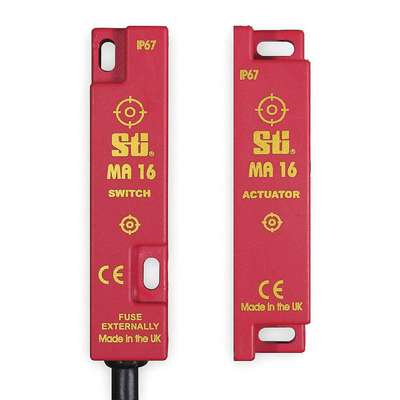

Omron Sti Magnetically Actuated Safety Interlock Switch: 0.98 in Off Sensing Distance, Bare Wire

Hover over image to magnify
Interlock Switch,1NO/1NC,ABS
Interlock Switch,1NO/1NC,ABS

#938984-9 | Pkg Qty: 1

$414.53 pkg | $414.53 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Actuator Depth
3/4 in.
Item
Magnetically Actuated Safety Interlock Switch
Actuator Height
3.25 in.
Mfr. Part Number
44507-1621
Actuator Length
3.23 in.
NEMA Rating
6
Amperage
1 A
Off Sensing Distance
0.98 in.
Body Material
ABS
On Sensing Distance
0.28 in.
Brand
OMRON STI
Package Quantity
1
Cable Length
19.7 ft.
Series
MA-16
Contact Form
1NO/1NC
Shipping Weight
1.05 lb.
Contact Type
1NO/1NC
Termination Type
Bare Wire
DC Contact Rating
1.0A @ 30V
Type
Magnetically Actuated
Depth
3.31 in.
Voltage
24 VDC
Height
3/4 in.
Width
3/4 in.
IP Rating
IP67
General
Actuator Width
0.75 in
Switch Depth
0.67 in
Includes
Actuator
Switch Height
3.31 in
Operating Temp. Range
14° to 131°F
Switch Width
0.75 in

Product Description

This magnetically actuated safety interlock switch is completely encapsulated for use in harsh or wet environments. It is designed to operate on a machine guard within a specified operating rage. When the actuator moves out of its operating range, it automatically opens its safety contacts.

Item Barcode
9389849
Interlock Switch,1NO/1NC,ABS
 NameItemDescription
Grainger DropshipGrainger Dropship2LCG1
UNSPSC CODESUNSPSC CODES39122213
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009
