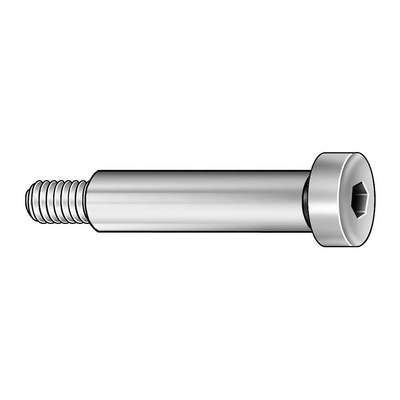

Shoulder Screw: 3/16 in Shoulder Dia., 1 in Shoulder Lg, 8-32 Thread Size, 3/16 in Thread Lg, 5 PK

Hover over image to magnify
Shoulder Screw,3/16"X1",8-32,
Shoulder Screw,3/16"X1",8-32,

#938939-7 | Pkg Qty: 5

$22.90 pkg | $4.58 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
APPROVED SUPPLIER
Mfr. Part Number
4423
Class
2A
Pack Quantity
5
Drive Size
3/32 in.
Rockwell Hardness
B95 to B100
Drive Type
Hex Socket
Shipping Weight
.06 lb.
Head Height
5/32 in.
Shoulder Length
1 in.
Head Style
Standard
Shoulder Length Tolerance
+0.002 in.
Item
Shoulder Screw
Thread Length
3/16 in.
Meets/Exceeds
ASME/ANSI B18.3.3
Type
Precision
General
Dimensional Standards
ASME/ANSI B18.3.3
Pack Size
Small Pack
Drive Size
3/32 in
Precision Screw
Yes
Drive Type
Socket
Rockwell Hardness
B95 to B100
Finish
Plain
Shoulder Diameter
3/16 in
Finish Type
Plain
Shoulder Diameter Tolerance
-0.0015 in to +0.0 in
Head Diameter
5/16 in
Shoulder Length
1 in
Head Height
5/32 in
Shoulder Length Tolerance
-0.0 in to +0.002 in
Head Type
Standard
Shoulder Screw Type
Precision Shoulder Screw
Material
Stainless Steel
System of Measurement
Inch
Material Grade/Class
18-8
Tensile Strength
116,000 psi
Material Type
Stainless Steel
Thread Fit
2A
Minimum Thread Length
3/16 in

Product Description

Screw has a closer tolerance which permits its use in critical applications requiring greater precision. The undercut beneath its head enables the screw to mount flush to surface.
