BRYANT

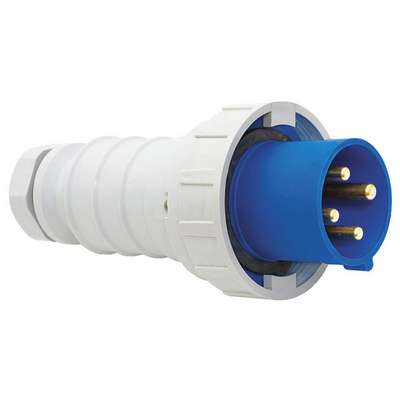

Bryant Pin and Sleeve Plug: 100 Amps - Plugs and Receptacles, 250V AC, 3 Poles, Nylon, Blue
Hover over image to magnify
#938912-3 | Pkg Qty: 1
$474.28 pkg | $474.28 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amperage
100 A
Mfr. Part Number
BRY4100P9W
Amps
100 A
Minimum Wire Size
3 AWG
Body Material
Zytel 801 Nylon
NEMA Enclosure Rating
Not Rated
Brand
BRYANT
Number of Poles
3
Cap Type
No Cap or Cover
Number of Wires
4
Color Family
Blue
Outside Diameter
4.92 in.
Connection Orientation
Straight
Package Quantity
1
Current Rating
100 A
Phase
Three
For Maximum Cable Diameter
1.68 in.
Pin & Sleeve Standards
IEC 309, UL Listed
For Minimum Cable Diameter
0.9 in.
Power Indicating Light
No
Grounding
Grounded
Reverse Service
No
Grounding Style
IEC
Shipping Weight
2.3 lb.
Horsepower
5 hp
Shrouded
Yes
Housing Color
Blue
Standards
IEC 309-1, IEC 309-2, UL 498
Housing Material
Composite
Switch Rated
No
IP Rating
IP67
UL 94 Flammability Rating
HB
Insulation Material
Nylon
Voltage
250VAC
Item
Watertight Pin and Sleeve Plug
Voltage Rating
250V AC
Maximum Wire Size
1/0 AWG
Wire Connection Type
Screw Terminals
General
Amps - Plugs and Receptacles
100
Phase - Electrical
3
Body Material - Pin and Sleeve
Nylon
Voltage - Plugs and Receptacles
250V AC
Features
Watertight
Product Description
Features a tough, nylon housing that protects against cracking, warping, corrosion, and chemical abrasion. Neoprene sealing glands provide a water-tight seal. Solid brass pins provide contact reliability and superior conductivity
